Jewellery and silversmithing photography

Wato wato all,

A lesson learned far too long to realise, presentation is sooooo important if you wish to appeal to the people who will allow your work to be presented to the purchasing public.

do not underestimate the value of professional images of your work. They will pay you back the cost many times over. It’s my experience,

an image taken on a phone just will not cut it next to studio images, such as these.



Until next time. Very best wishes.

Stuart G.

img_1941

What a dramatic result. Energy and movement with a juxtaposition of the pebbles on a stream theme

img_1953

Water and silver, smashing movement in this image. Attractive and interesting.

13267992_471241833075393_8443690730463992729_o

Wonderful example of a clean group shot. Websites love this sort of image.

img_1939

Opal ring commission

img_1943

Dark, still detailed. You try it!

img_1954

What a dramatic result. Energy and movement with a juxtaposition of the pebbles on a stream theme

13320408_472880899578153_5807238910066444344_o

Royston turquoise

13268051_472880889578154_6118689757373882302_o

Another Royston Turquoise, not many left.

13235419_471241779742065_4841356247671294746_o

Experimenting with textures on this Amethyst dome ring.

Advertisement

Jewellery Making Cornwall Students, stones and smashing work

Wato everyone,

Eight months of starting Jewellery Making Cornwall, here are just a few of the successes. The following are pictures of participants in the six week beginners course held here in the beautiful surroundings at Perranarworthal, between Truro and Falmouth in sunny Cornwall.

I will post more of the activities here in future posts. For now, like me, for sure you are all impressed with this fine snapshot of the work completed by people, most of who have never made a thing before. The more intricate are from some who have continued to be a part of this creative hub, joining the weekly three hour sessions for improvers.

I will post more pictures of the site and exciting opals and other stones shortly through my friend Stuart Wheeler who is joined next door.

Jewellery Supply South West is on Facebook if you wish to look beforehand

13537511_482872615245648_6783057636996012262_n

A week three beginner!!!!! As you see, a real talent for sawing. As you can imagine, this lady was super proud of her achievements. This is the ladies name in Arabic cut out and sweat soldered to the pierced pendant.

img_0222

A first attempt for a lady to make a chunky signet ring for her sweetheart.

img_0226

Clay casting with my specially made half’s specifically for making rings easier to cast, rather than the more usual round rings.

img_0225

The downside is not as accurate as ‘proper’ casting. However, its only a bit of elbow grease to clean up.

img_0224

img_0217 A pretty nice result, for sure you will agree. The chap never takes it off. Awwww.

img_0947

The level of creativity some people come up with is astonishing.

img_0950

Wonderfully simple with unique one off fitting.

img_1023

A smashing lady made this tie clip for her fathers birthday.

img_1024

He was in tears upon receiving it. Amazing the effect our handiwork can have. giving work so much more meaning that its utilitarian face value.

img_1051

A Disney princess had this idea for a bracelet. What a result don’t you think. Everything made from scratch, down to the individual ball ends.

img_1136

Some of the abstract forms are truly wonderful.

img_1160

A lady made this for her daughters birthday. Turquoise being a favourite stone.

img_1199

Lady came in with an idea. Can we make this. Yes, you can, and she did.

img_1295

Another request made real by the person who thought it here in the workshop.

img_1323

Another birthday present for a daughter. Ruby flower designed by Mum.

img_1691

Contemporary clean and very sophisticated and exacting. Zara is now promoting her own brand, starting out on her jewellery making adventures after completing the beginners six week workshops.

13315555_472881412911435_5019960865815620723_n

The final project for Zara. Pretty awesome you will agree.

img_1878

Check this out. The killer clown. A very creative lady who is a photography whizz. As you can see, a massive undertaking for a first personalised project. Bloody brilliant bracelet eh.

img_1876

Another final project, flower ring, designed and made here by a young lady with a strong will and the determination to back it up. Wonderful achievement.

img_1724

A 15 year old young man came with his grandmother who is already an improver. This is what he made never having touched a tool before. As you can imagine, his Mum was over the moon.

img_1156

Loving the layers and three dimensions.

img_1790

Whats to add!!!!

I will post more pictures of students work from time to time.

Until the next time, not eight months.

All my very best wishes.

Stu.

Circle or disc cutter for making blanks for hand raising or sinking silver, copper, tinsmithing bowls.

http://youtu.be/WtyAoITMHFA

Wato wato all. Very long time no communication eh!

Lots of water has passed under my bridge, as for sure yours also, since the last posting on silversmithblog. My new job at the Jewellery workshop in Porthleven has been a mixed and varied bag of delights, horrors, failures and victories that will no doubt continue to crop up in the coming posts. Looking forward to sharing the experiences that will help you to realise its only you in the way of making what you envisage in your head. Remember, all I know is technique that can be learned with ease if the application of the craft is exercised in the correct manor.

Its appropriate for me to now state that, at this time, looking to the types of work needed to service commissions. Also items bought in for repairs and adjustments has rendered me a bona fide Goldsmith. Never in my earlier wildest fantasies did this enter into my mind. The challenges have been both frustrating and rewarding to say the least. Enough of that for now, lets get on with the real passion, silversmithing. Well copper for now anyway.

A long while ago a promise was made to video the circle cutter that I am very fortunate enough to be the custodian of. The link at the start of this post will take you, (with luck I have done all the right things for this to happen) to YouTube to see said video. Had no idea you couldn’t upload a video here, you live and learn eh.

For those who watched the clip, sincerely hope it was enlightening, perhaps even entertaining. Please do give some feedback as if you wish, more clips can be added if you so wish. I know YouTube is awash with really great content, though bound to say haven’t trawled through it for some time myself. I will not add to the numbers if it’s not relevant, up to you. Better still, encourage me to post something you may wish to have better explained that will help with more visual content.

I showed the model that has been an experiment, now it will go further with the four copper bowls that are, finally, on the way.

Reen makes wonderful quilts, probably mentioned this before. Pictured here are two of her creations that led to the idea of the designs to follow.

DSCF3915 DSCF3916

As you see, they convey wonderful movement, along with wonderful patterns. The model in the video, if you look closer, uses these lay out patterns, or at least like them, to start. I wondered how the raising process would effect the geometric, straight lined patterns. The distortions are very pleasing to my eye, wishing you may agree. They lend themselves very well to chasing and repousse decorative techniques, don’t you think.

Missing the larger scale work, working on small scale jewellery at this time, most of the time. Bound to say, I have been pining for more hammer work and less soldering/constructional work. Looking forward to seeing where this goes. As those of you know who have followed this blog from the start, major influences remain Hiroshi Suzuki and his hammer chased vessels. At least one of the bowls will employ hammer chasing, if you return to looking at his exquisite creations, the patterns I will use will be of a similar flavour to his signature natural forms. Not forgetting the awesome and wonderful human being that is David Huang, have I mentioned him before 🙂 I intent to give these bowls a rim, with my own ‘twist’ as a nod to his massive, incalculably huge continuing influence on my approach. This blog was in large part influenced by his generosity, for those of you who have not, please do look him up, I guarantee you will not be disappointed.

I do not want to go on too much as I know this is a continuing personal failing. Suffice to say, its good to be back on the blogasphere. Please do get in touch.

I will be telling you more of my adventures as a jobbing jeweller in a busy shop, as well as my wonderful times as a tutor for the workshop. In two weeks I was fortunate enough to enable 60 people, including my now weekly 8 week beginners course that is rolling out continuously for the foreseeable future.

Until then, all my very best wishes.

Stu

Master metalsmiths David Huang and Hallam Ford – double treat

Wato all

No more navel gazing for a while, marketing and selling topics will be returned to in future posts. At this time work is continuing on simpler, faster to produce, therefore cheaper work to offer the market to allow me to go forward.

Back to the more interesting and far more rewarding topics of making eh 🙂

Today in my in box these two gems were delivered. Bound to say the urge to share has made me want to fire up this site right after I listened and saw each one.

Ford Hallam is a traditionally trained, in Japan, metalsmith. I urge you to take the time to see this exquisite craftsman in a beautiful short film. The soundtrack is wonderful also. Hammer engraving and inlay work are just a couple of things that will engage you. Please take the time to navigate his site. He is working on a book series that will be a priceless resource for those among us who aspire to the highest levels of technical excellence.

I’m bound to say. When presented with this rare opportunity to see a master craftsperson at work. The chasm that is the gap between ambition and aspiration appears almost insurmountable. Daunting even when presented with a mirror showing personal limited ability, knowledge and direction to achieve it. I know you will love this short film. The link to his website follows the film link

http://bradshawschaffer.com/Bradshaw_Schaffer___Filmmaker___Yugen.htmlhttp://

http://www.fordhallam.com/

David Huang needs no introduction for those of you who have followed this blog from the start. Fair to say, somewhat of a hero of mine for more reasons than just his fantastic skill set and awe inspiring design aesthetic. I have corresponded with him in the past. A total gentleman and a very honest individual who gives you the complement of being blunt, telling you how he sees it, rather than thinking and relaying what you may wish to hear.

http://www.blogtalkradio.com/whaleystudios/2014/09/11/metalsmith-benchtalk-with-david-huang-creator-of-luminous-metal-vessels

This is a blog talk radio broadcast. The start is a bit scrappy. Stay with it it gets going at about 1min 45seconds on, 2mins and all is tickety boo.

I hope you enjoy these two treats. A huge thank you to all who commented on the previous posts. Again, it was not about looking for praise for the work, rather a cry for help as to where to go to sell it.

Until next time. Very best wishes.

Stu 😉

Sterling silver forged bangles and a brooch that doubles as a pendant

SH_05SH_01 SH_02 SH_06SH_04SH_03DSCF3537DSCF3531DSCF3532

Wato wato all

Opportunity is a double edged sword isn’t it, my friend, also a survivor of ‘education’ from the previous year, Nicola Bottono http://nicolabottono.co.uk.websitebuilder.prositehosting.co.uk/

asked if I would drive her to see Paul Mountsey, the photographer who now takes all of Cornwall Crafts association pictures, as well as my previous professional pictures

http://www.paulmounsey.co.uk/

http://www.cornwallcrafts.co.uk/view-craftsmaker/221

You will love her work, dedicated as she is to her vessel pendents, go have a look and read about her inspiration, the pictures taken of her work are fantastic to see.

I have had a bit of a run on these forged bangles, the Jewellery Workshop has sold quite a few. I was in the fantastic position, for the first time, of having to pull my finger out and make some more to cope with demand, great stuff eh. The summer here in Cornwall is good at this time, the children have broken up from school and the tourists are flocking to Porthleven, and buying my work.

Never a great time, I wanted to spend more time on this batch to go to be photographed, Nicola, alas, had time constraints and had to be there on a day that suited her busy schedule. I had to complete my sample, just back from Assay, completed on the evening before. I am not 100% happy with the results. Proof positive that rushing is never a great idea in our chosen field. However they do convey something of the wave like appearance they present as they are twirled around ones wrist.

I also found another hammer at a second hand stall, modified it and had a play. The two finishes offered, one just lightly planished, great for refracting light. The other, with the aid of two hammers, are given a directional finnish to accentuate the curves as they spread out in the wider parts, compressing in the transitional parts of the forged design.

I also like the way, when looked at the opening, the directional way the four opposing waves present each side, give the impression the bangle is square. I’m bound to say I’m over the moon with these, all sizes have a subtle difference that is best seen up close as the pictures have a job conveying the way they are over the three widths. I started with 3mm, 4mm and 5mm sterling silver round wire, soldered into a round. I made a stake especially for these that gives me a consistent angle as the ‘waves’ are forged, four one side, then flipped over to do the other side. The smallest (narrow gauges) are able to be completed in one, sometimes two annealing stages. The 5mm ones are quite a grunt to get them to move and require more work than their appearance would at first suggest.

I received the pictures, then put in my application to sell through a web based retailer, I will tell you all about it when I get some feedback, don’t worry, warts and all 🙂

As many of you know, it has been a struggle for me to come up with more commercially viable work. I will continue to chase and repousse some work, however I intend to concentrate more the forged line as fewer people appear to be doing such work. Now I’m very aware, this is also the case with repousse, the difference here is the cost of completed work. This is very much more affordable due to my being able to make forged work very much more quickly.

Some may remember me mentioning, I started my working life as an assistant to a farrier, a blacksmith specialising in making and fitting horse shoes. When I attended College, silver prices were very much higher, I wanted to go back to forged work then, a mixture of ridicule and price made me re consider. This is not an issue now, bound to say I feel like, a little tongue in cheek, an adolescence is being re lived a little, great stuff.

I have had steady sales priced at £69.00 3mm, £129.00 4mm and the monster 5mm is £189.00. I will put these on my website ASAP to go with the other directions written about above.

Now to the pendant and brooch combination. I felt that it would be nice to give added value to some repousse work by making a pendant that can also, if chosen, be pressed into service as a brooch. This has been very well received and ameliorates some of the cost considerstion. A bit like buy one get one free if you like.

I have posted pictures I took alongside the professional ones to give you some idea of how I did it. The pin is made from dental grade 1mm stainless steel wire, I made the silver tube for the pin to pivot in. The catch incorporating the pendant loop was made from a single piece of Sterling silver wire, forging the pin retainers, bending them into loops before soldering. If you would like more information, please let me know, I’ll post more detail if you’re not clear.

I have a huge favour to ask of you all. I know most all of you are fellow makers, not buyers. When you see fit, please pass on my details to others who may be interested in purchasing, or selling on my work. Needless to say, I would be overwhelmingly grateful for any leads you are kind enough to share.

I havent forgotten the ‘dirty’ workshop piece that is to be shown, still later than planned. Bit of an embarrassment to share; being a lumbering, clumsy oaf of a chap. The door to the shop was sticking, I bumped my hip against it to secure its closure due to the swelling of the door, damp here you see. The resulting crash of broken glass and splintering of broken door meant I had to tarpaulin over the hole, sheltering my beloved lathe behind it. The resulting furniture needed to keep it waterproof whilst a replacement is made means the shop doesn’t look much like it should right now.

Now I have some funds, a replacement door should not be too long coming, then I will post pictures and explanations of the various bits and pieces I use.

Until next time, thank you again for keeping in touch.

Kindest regards and very best wishes.

Stu 🙂

No better way to start repousse and chasing

A great place to start if you wish to learn about chasing and repousse.

Victoria has a first time sale. I highly recommend you consider her fantastic instructional DVDs.

If you like my work, it’s unlikely I would have made it this far without her instructional work. Also a very kind lady who will respond to your questions.

I will add, I do not receive anything by writing his. I would just like to share the experience, as I found it invaluable.

Best wishes.

Stu Art.



http://www.victorialansford.com/dvd.html



Sterling silver moon ring how to with home made tools. Part 2

DSCF3473

This is the nylon hammer I used. Wood or leather would have worked. 15mm doming punch used to refine after the doming block stage.

DSCF3441

Bolts used for forming, I used all three. Study the photographs, you can see the increased angles; the middle one first, the one in the foreground second, lastly the one on the right that I made in the metal lathe.

DSCF3479

Test fitting with line drawn in the middle as a guide for forming with the nylon hammer and the modified bolt stakes. I refined the design as I went along. The final version was more rounded, I also cut away the bulky shank. Compare this to the completed ring.

DSCF3480

Final rounding of the shank.

DSCF3481

I made this asymmetrical to give me a choice of profiles.

DSCF3486

Small hole drilled in shank to let gasses escape when soldering. I have never used easy solder before, I will in future. Use plenty of it.

DSCF3488

I’m not sure I fully recommend it; look at the top of the picture. The marks are left by the placing of the pallions of solder. I would normally turn the ring over and re apply solder to the other side. In this instance the solder ran clean to the other side, fully sealing the piece without additional soldering.

DSCF3490

Sawing off the unwanted parts of the shank.

DSCF3491

Savage beasty this, be careful, really fast though, saves lots of time roughing out. Notice I stopped just shy of being flush to the surrounding silver.

DSCF3492

Large half round file, almost but not quite nearly 😉

DSCF3493

Last of the files, small half round needle file, now nicely blended, ready for final polishing.

DSCF3478

Close fitting solder joint as I cut through both sided at the same time, making sure they would fit the shank.

DSCF3495

Photographed outside.

DSCF3502

Wato wato the end of the ring project.

This is a great example of wanting to make something but not having to hand the tools to realise it. As time goes by, I understand more and more why I’m not currently able to sustain myself in this craft. I spend far too long procrastinating on designs, making tools to realise far too many failed copper models before coming up with something I think will appeal. Only to discover I’ve barked up the wrong tree. At best a niche item, nowhere near commercially viable.

I now, with huge regret and not a little embarrassment, view my metalwork/silversmithing as a hobby only now. All ambitions of being able to support myself financially through my chosen craft showing as unrealistic at this time. I feel the clue here is in the realisation that I associate myself with the term craft, rather than designer or artist. As I become ever more bewildered as to what is marketed, I come to realise my place as fairly and squarely a maker in a world than no longer needs makers. Concept appears to be king. I feel its akin to being a computer, fantastic at maths; however it takes the genius of a mathematician to make beautiful equations. I aspire to be more conceptual in my approach to the craft. However my first love is the love of learning more about past masters and the techniques they employed to achieve wondrous constructions. The past machine age is pure romance to me. This is lost in a new era where, at the push of a button, designers/artists realise three dimensional objects, made by unseen operatives with mass production machines in such vast numbers as to make pretty much anything commercially viable. I have neglected to fully understand what is fashionable, wearable and viable. That’s the negative. The positive is that now I am no longer attempting to make a life for me and mine using just my hands. My resulting, more relaxed attitude towards this craft will, with luck, result in a positive re think. Trying to become a ‘mathematician’, not concerning myself as much with the mechanics, ‘computer’ aspect of creating wonderful objects. Working towards becoming a creative designer, rather than just as a solver of technical challanges. Watch this space 🙂

If you look at the bolts I modified for this job, I looked at stakes from established tool supply houses. Here in the U/K it is becoming ever rarer to source forming tools, the ones that are available are prohibitively expensive for a hobbiest. As we use very soft, non ferris metals, even a common or garden bolt will suffice for forming. If you wanted to make a more permanent, planishing stake from a bolt you can buy/salvage hardened steel bolts and fashion them to the shapes you desire. Cylinder head bolts work very well, you can look up through fastener suppliers, the hardness rating of a bolt, if you wish to purchase new.

I used a metal lathe to make these. I was thinking though that those of you without access to such a machine could use a drill and a hand file to create a similar stake. Chuck up a bolt that you have founded off best as you can in a vice, then spin it in the drill, rounding as you go with a file. Finish off with coarse to fine paper whilst still spinning in the drill. Be careful as the bolt will get hot. Try to use a drill stand so as to keep it all steady and have both hands free for proper filing. I also add chalk to the file and paper. This gives a better finish as it prevents the build up of metal particles in the ‘tooth’ of the file or paper.

My aim with the next post is to introduce you to my garage machine shop. Fair warning to those of you not interested in such things.

If you have any questions about the ring, or anything else, as always, please don’t hesitate to ask. Thank you for looking.

All my very best wishes.

Stu Art 😉



Sterling silver moon ring how to with home made tools. Part 1

DSCF3504

The completed, hallmarked sterling silver rings.

DSCF3508

The first, spiky example was my first attempt at a ring at my first year of College. I am drawn to this type of construction, though I wouldn’t recommend this ring. It was a good exercise on many levels, not least, how to make something totally unappealing 🙂 it taught me a lot about soldering though. The second was my first attempt to make a ring with repousse and chasing techniques to take advantage of the ‘skinned’ or two part hollow nature of these rings. The third is where this project takes off.

DSCF3424

To give you a flavour of the process, some experiments, drawn, paper mock ups and copper blanks ready for the next stage.

DSCF3422

This is not the final patter, though pretty close. If you do something similar I would recommend using graph paper, I did in the end. The reason is, when cut out you notice, especially in the following processes, that your pattern isn’t quite symmetrical. Graph paper makes this far more preventable.

DSCF3423

Some of the directions from the comfort of my drafting table,. Told you I couldn’t draw 🙂

DSCF3432

I can’t remember where I picked up this tip. Fabulous stuff this rubber cement for sticking paper patterns to metal. Cover the metal and the paper with the glue. Blow on the metal until it goes matt, slide the paper pattern and leave for a min or two. Saw up to the pattern, great stuff.

DSCF3434

Blank in copper domed in the block with a 15mm doming punch. Starting in a larger depression, moving down a size, four or five times. If you try too small too fast, it created nicks in the corners of the piece where it is trying to compress too quickly. Anneal if you feel the need.

DSCF3436

From a previous post. remember my, made from copper, filled with lead pitch bowl. This parcel tape fits the bill as a great stand for it. Some grippy cloth in-between keeps thins nice and stable.

DSCF3437

2mm and 3mm doming punches for repousse stage.

DSCF3438

Same again for the chasing part.

DSCF3440

Using a suitable sized doming punch, to fit the ring shank you need. Mark the overlap, cut through both layers (each side) to create a perfect soldering joint.

DSCF3441

Some of my miniature metalwork forming tools. See text.

DSCF3443

Showing how to round off the shank. Use a soft hammer, not metal as this will stretch the metal. Remember this if your outer is too tight to fit the shank. You can use a metal hammer to the stake to stretch it to fit.

DSCF3442

You can just see the air gap. I will go into more detain in the next post.

DSCF3469

The silver blanks ready.



Wato wato one and all.

This ‘moon ring’ was a request, I have no idea if it will sell, made a couple just in case.

This journey is in two parts, this one shows you a little background. Also the refinement of the design and the tools needed to realise it.

The references to looking to the text will be covered in detail in the next post. Hope you enjoy reading about it. Also I hope it inspires you to look at the things around you in a different way. You never know where the next tool is lurking, just keep looking.

Until next time. Very best wishes.

Stu Art.

Move to outside workshop

DSCF3446

My bench, all made from reclaimed stuff. The top cane from a skip, the table it sits on was being slung out. Its raised on two rough sawn off cuts, not elegant, effective though.

DSCF3447

‘Plier rack’ is an old plate stand, keeps files to hand as well. The filing cabinet has my tumbler, pickle pot (an old slow cooker, make sure its ceramic, not metal if you try yourself) and one or two fondue set mini pickle pots, heated by tea lights, for small work. The table/stand is a laptop stand, height adjustable, very useful.

DSCF3448

Solis cast iron surface plate, or sometimes called a flat iron, perfect for checking the trueness of raising, marking out and checking for flatness. Old fire bricks salvaged from electric night storage heaters, two turntables, the smaller one for a T/V, the other is a twist exerciser, both plastic so be careful. With the size of the bricks placed on the soldering table, I have no issue with heat reaching the turntable. Both found in junk shops.

DSCF3449

Truly awesome guillotine, I took this apart and painted it. It is so heavy, I used a motorcycle jack to help take it apart. As it was over a small drain, the weight cracked through the alloy drain, toppling it onto my pushbike, you should see the dent in the frame ;/

DSCF3450

A mod roc, wire and wood ‘sculpture’ I made for a project. Do you think it would work in copper for outside?

DSCF3452

Swage machines, part of the tinsmiths hall. All need to be cleaned up and restored.

DSCF3454

Two old slip rollers, along with my modern rolling mill. Restoration of the old ones later!!!!

DSCF3455

Some of my hammers. That fan is great, force 10 at least, no paperwork out when this is running.

DSCF3456

A belt and disc sander I use for roughing out amongst other things the chasing tools you see here. They are attached by strip magnets used for storing knives in kitchens, you guessed it, from a second hand shop. The trolley, on wheels, was salvaged from a skip.

DSCF3459

Birds eye view. Got to have a cuppa tea. I’m British don’t ya know 🙂 The stool I use is a piano stool, the pad is on a screw thread, just spin it for height adjustment.

DSCF3462

Couldn’t resist this, beautiful at night, with switchable effects, just plain white, reminds me of the stars, you have to be here to see the full fantastic effect.

DSCF3464

My disc cutter, truly fantastic, beautiful machine. Always make me giggle every time I use it.

DSCF3467

A Norton fly press, more to come in the near future with this machine. The machine to the right, just visible the two rollers, is a bowl forming machine. Alas one of the cast gears is broken, on another post I will introduce my “dirty” workshop, (my garage) and the machine tools I will be using to repair it. Most of the stakes came from the tinsmith hall, along with most of the machines here, see text for explanation.



Wato wato one and all

Not posted for a while, work and a direction revisited from a previous time have meant not much happening at the moment. I was hoping the start of the holiday season would be more fruitful than it has proven to be so far. I have just made a batch of wire forged bangles. Alas they are difficult to photograph, I wanted to send them off to the jewellery workshop to try to get some cash-flow going, I will get the next batch professionally photographed, I’m very pleased with them.  http://porthlevenjewelleryworkshop.co.uk/

To the subject of this post, my move to outside with my jewellery work. Long story short, Reen, as you know, is a woodturner, membership secretary for Cornwall woodturnershttp://www.cornwallassociationofwoodturners.co.uk/

Now when we started with the workshop in the back garden I ‘shared’ it with her. As her hobby has grown, so has her collection of wood, not to mention the acquiring of a bandsaw and other wood related stuff. I resolved to just do larger work there, keeping my jewellers bench and associated bits in our spare bedroom. Burnt holes in the carpet and black smeetch marks from soldering/annealing led to the executive decision that I had to go outside.

Great news, Reen has a new shed. I now have re claimed the workshop, I thought I would share some pictures while it resembles some form of order.

I purchased a couple of years ago a complete tinsmith workshop tooling. As you see it is in a fairly rough state, the guillotine, disc cutter and fly press the only three things, apart from the odd stake, that I have gotten round to repairing/restoring. It was fantastic to meet the chap who sold it to me, he worked at this job, for the same firm all his working life. When he retired, the business closed down, he kept all the tooling in a, sadly, leaky lock up. He showed me a fly press die that he said was his first job when he started at 15 years of age. I’m now the very proud custodian of these time capsules. I don’t know if look forward is the right term, however as the years go by, time permitting, I will slowly restore each part. I have only shown some of what I have, I will introduce you to more as time goes on. Some of these machines, like the bowl maker, or the crimper with the associated accessories, are simply fascinating and wondrous to behold. All made from solid cast sections that are hernia inducing to move around. These industrial relics were the CNC machines of their time, I am very privileged to own these machines, they give me immense pleasure as I look at them, trying to figure out how they work, imagining the chap, his working lifetime etched into each one.

I know this has little to do with silversmithing per say, however these machines and associated stakes can be pressed into service for silversmithing purposes, as I intend to show you over the times we share.

I have pretty much completed a commission I will share with you next time, including some more, made from stuff lying around tools you can make yourself.

I apologise in advance for an upcoming post that shows my “dirty” workshop. A very nice person has expressed an interest in the old engineering machines I am fortunate enough to look after. Please don’t dismiss it as I feel sure, as people interested in making things, you should get something from it.

Until next time. All my very best wishes.

Stu Art

Chasing and repousse´bowl, new German red pitch used for completing sterling silver ‘Lawrence cuff’

DSCF3393

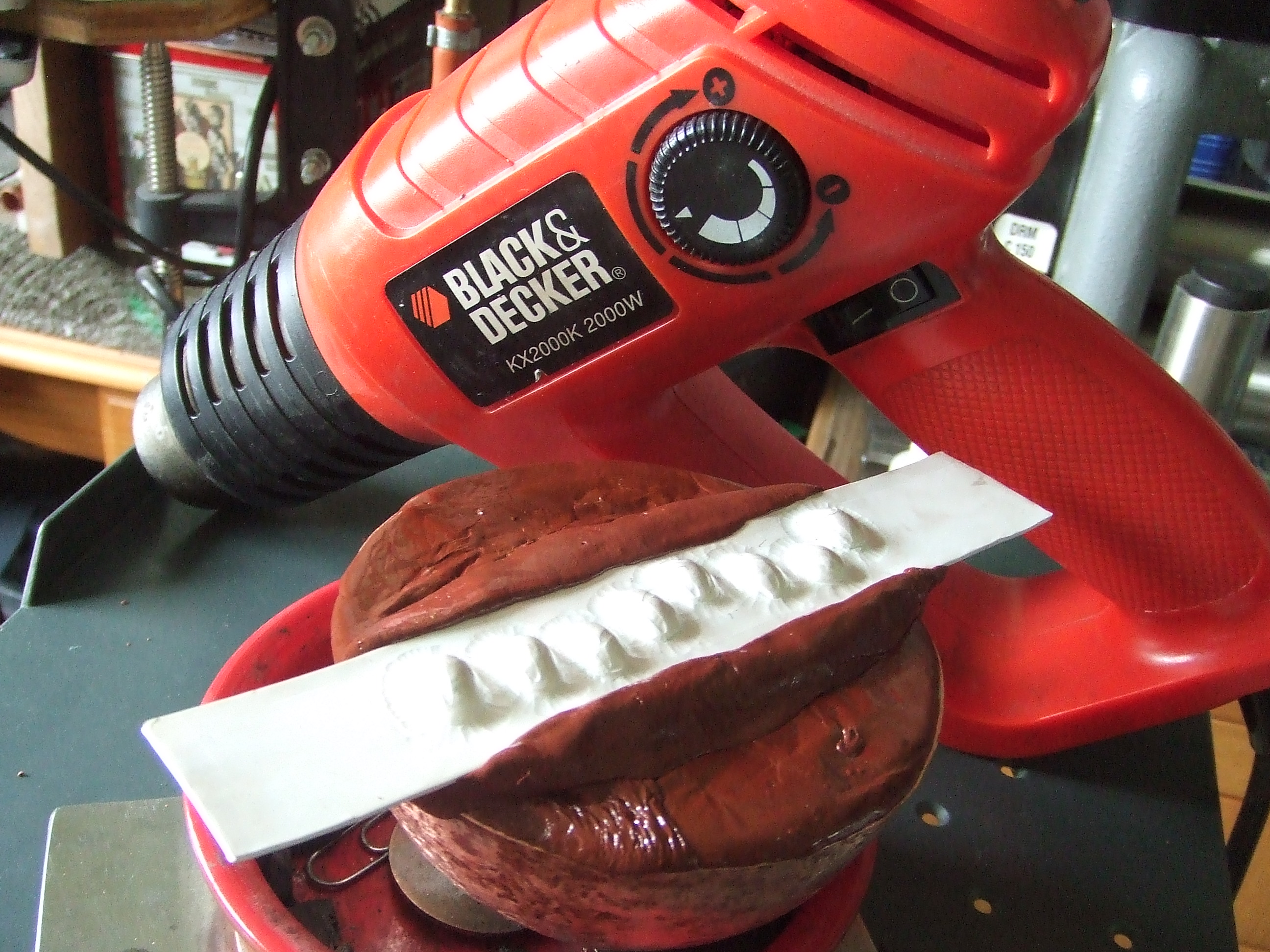

See text for explanation of hot air/paint stripper gun.

DSCF3394

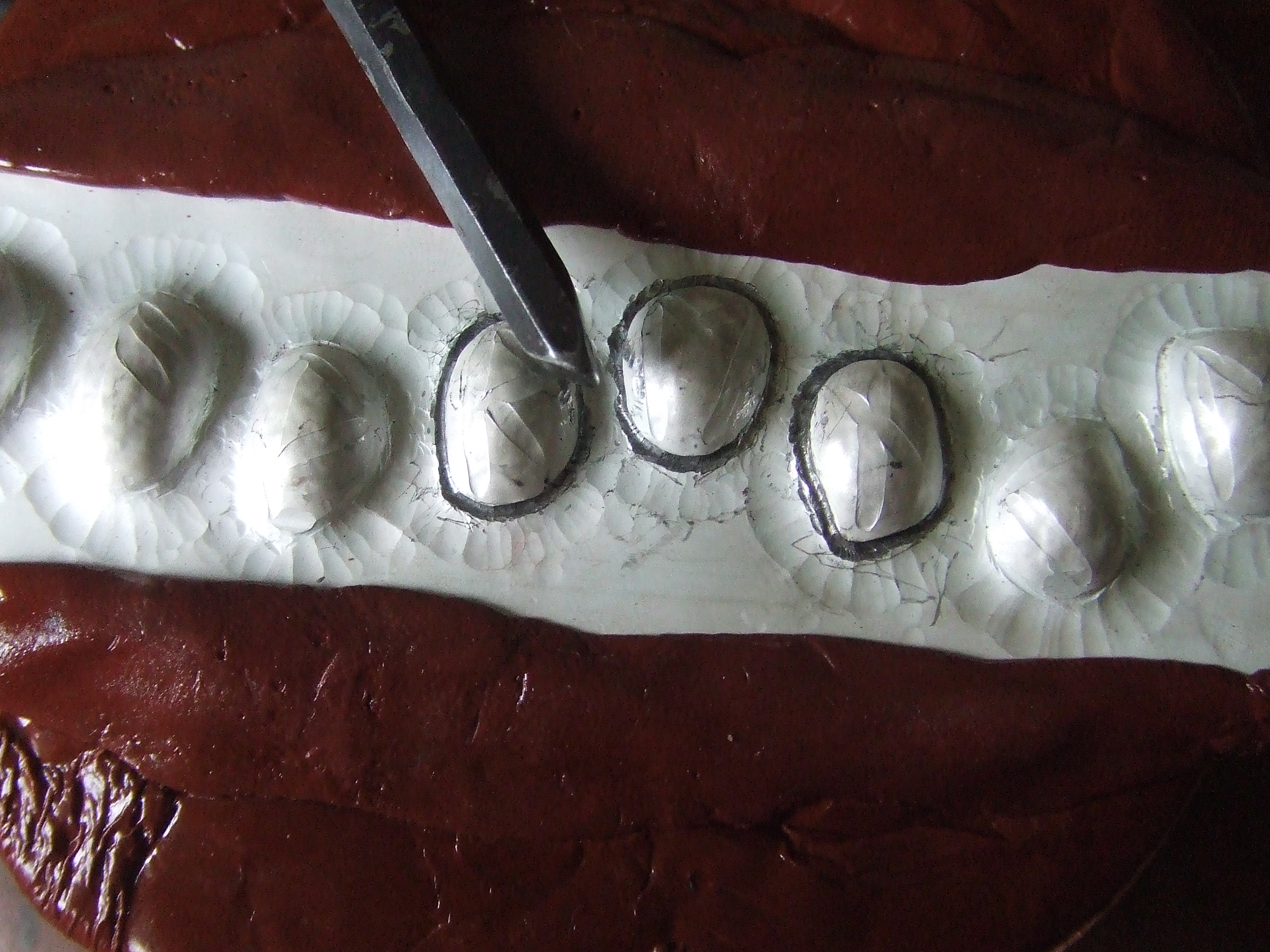

Because of the hight required for the ‘runes’, also the definition/separation from the background I wanted to achieve; you can clearly see the material ‘gathered’ from the surrounding ares of each stone to push more silver where thinning will inevitably occur.

DSCF3396

German red pitch, I now have experienced, is very much more supportive. To get this flatness with my normal green would have meant transferring from the pitch to a flat plate, using planishing punches to push back surrounding areas.

DSCF3399

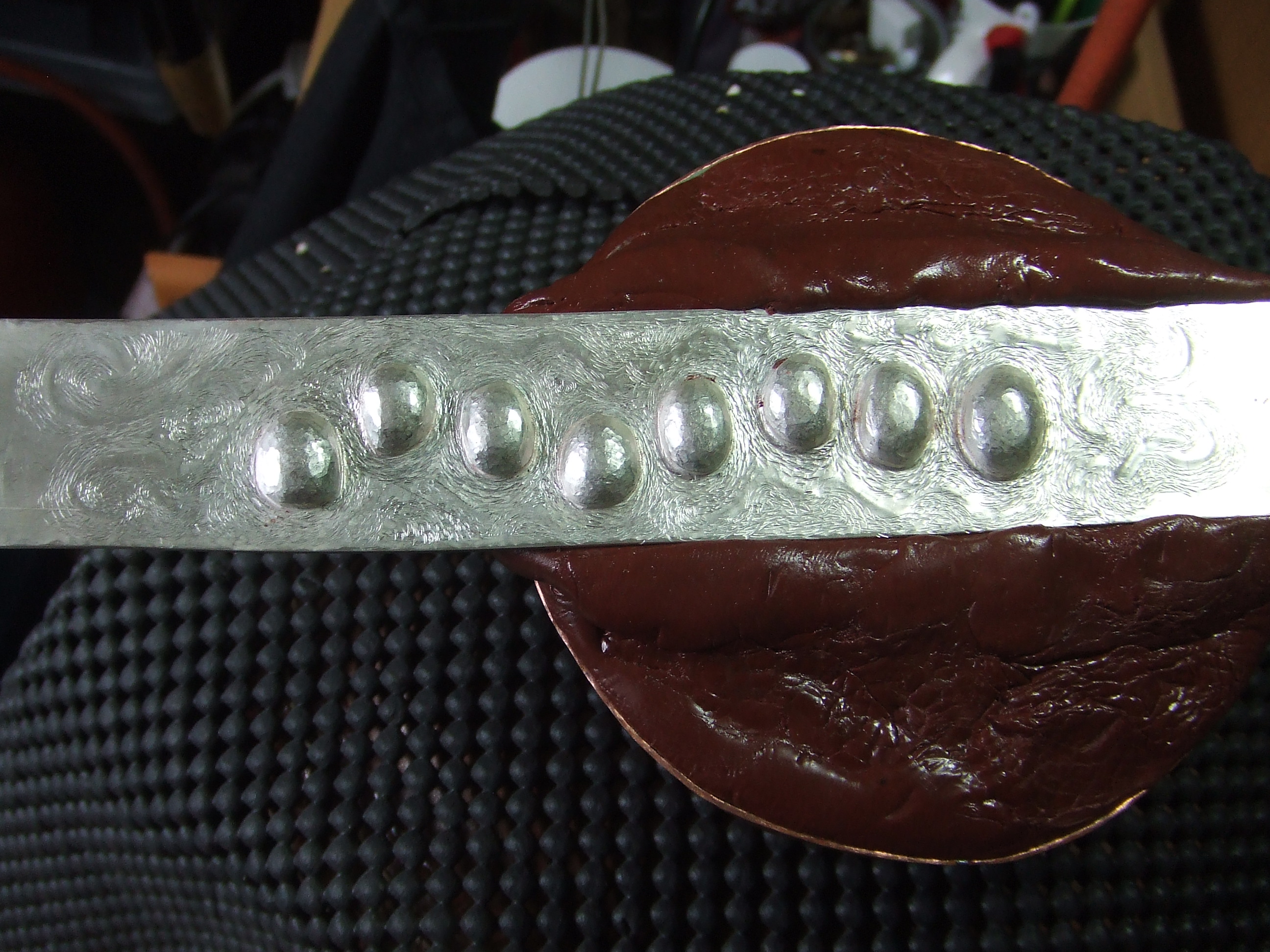

To cover up the marks made whilst gathering material, starting to use different curved liners to give the impression of flowing water.

DSCF3400

Not shown, look at the slightly raised areas made by turning the piece over in the pitch to repousse´ small water eddie type effect.

DSCF3401

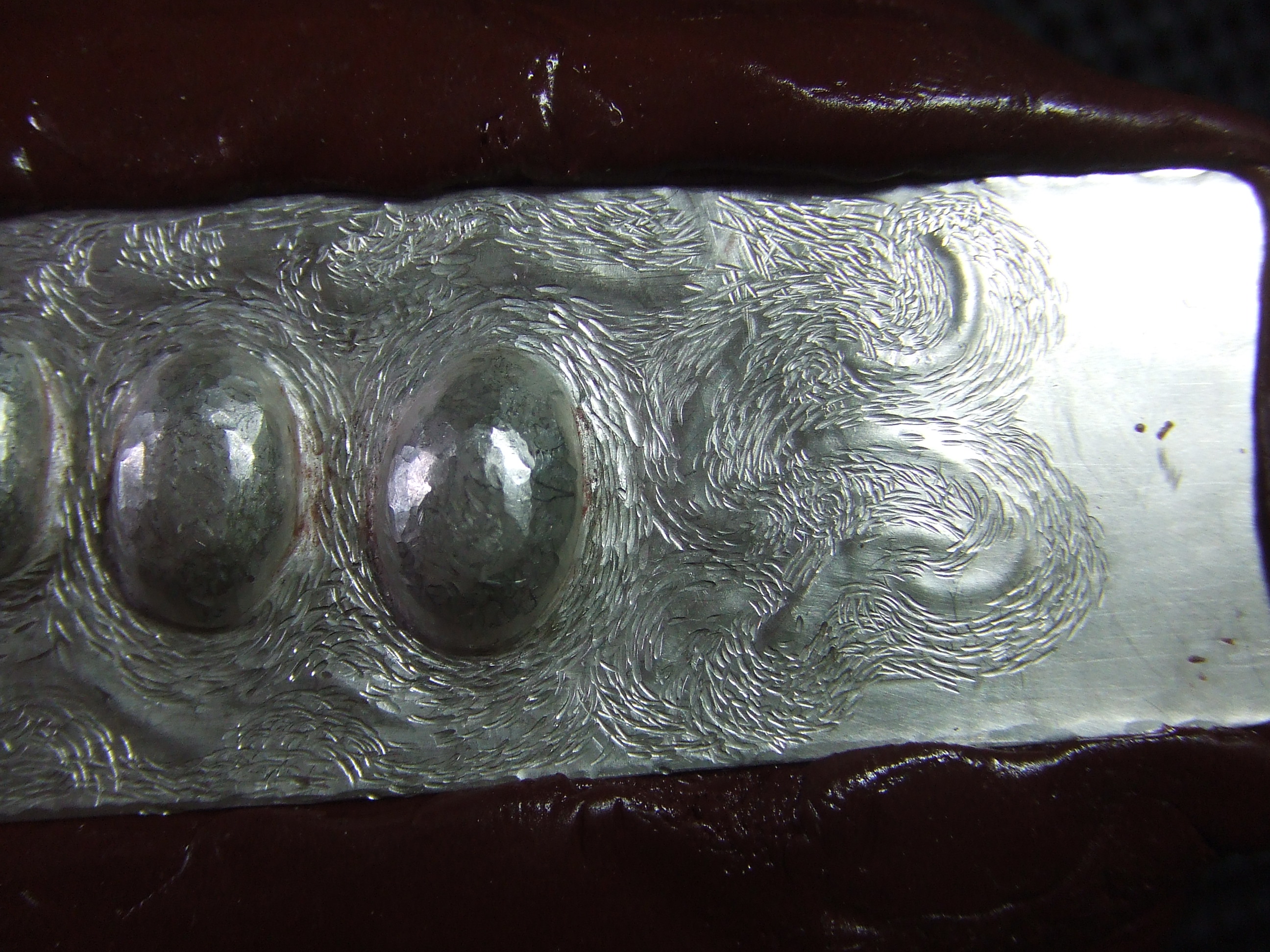

Close up of the water eddie effect I was shooting for

DSCF3402

After all the water flowing decoration was applied I planished each rune as best as possible with planishing punches. From the pictures of runes I have seen, many appear to be smooth and shining. Not my normal approach, I much prefer the planishing marks, however for the effect I was looking to create, polishing was next.

DSCF3403

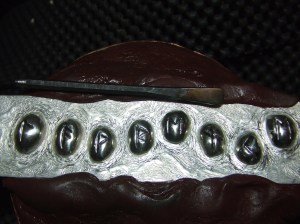

After polishing came the application of the name Lawrence in the rune alphabet.

DSCF3404

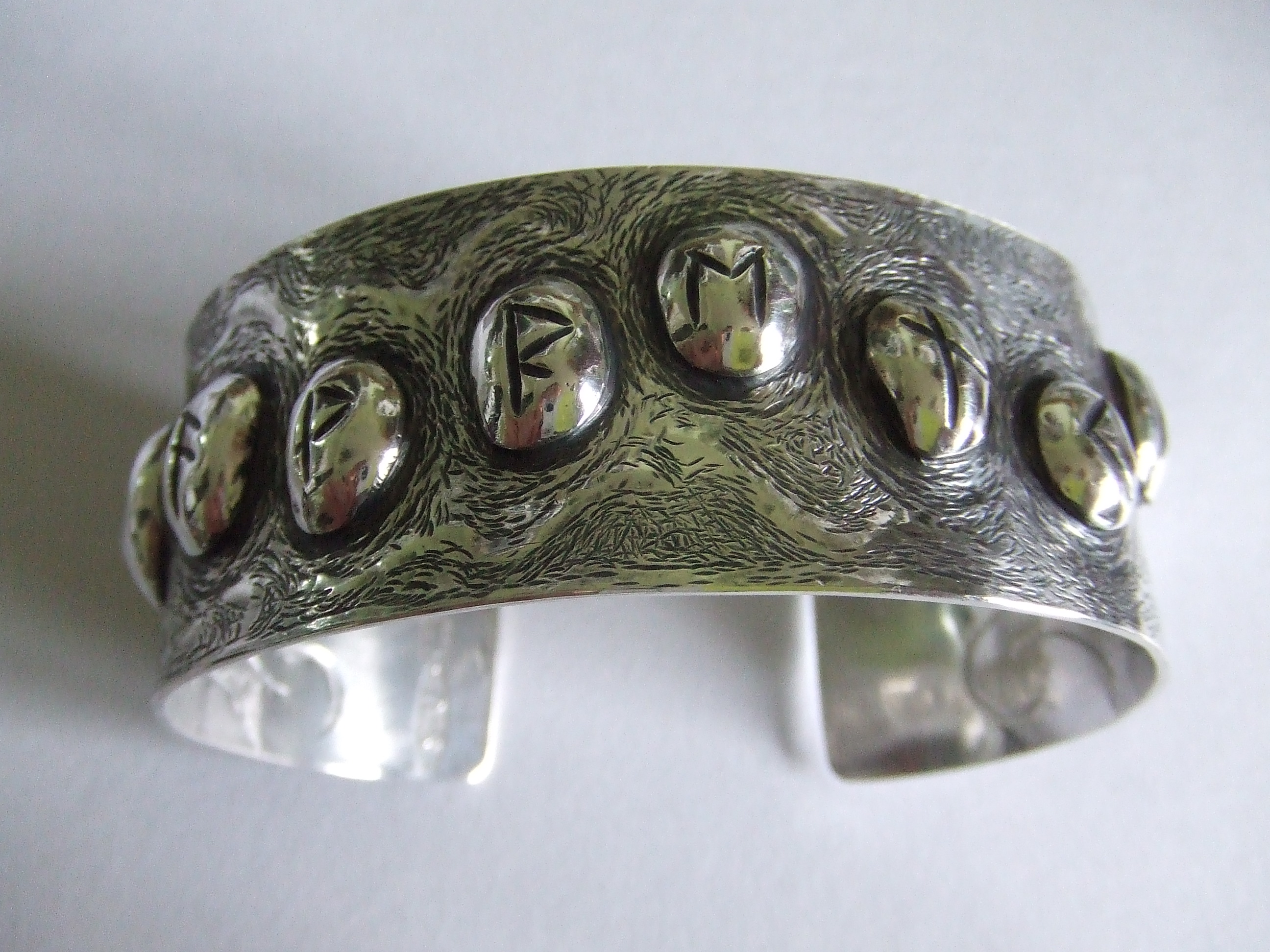

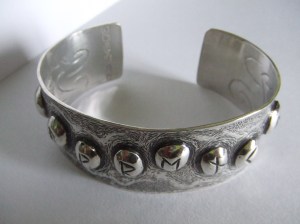

All done 🙂

DSCF3412

DSCF3413

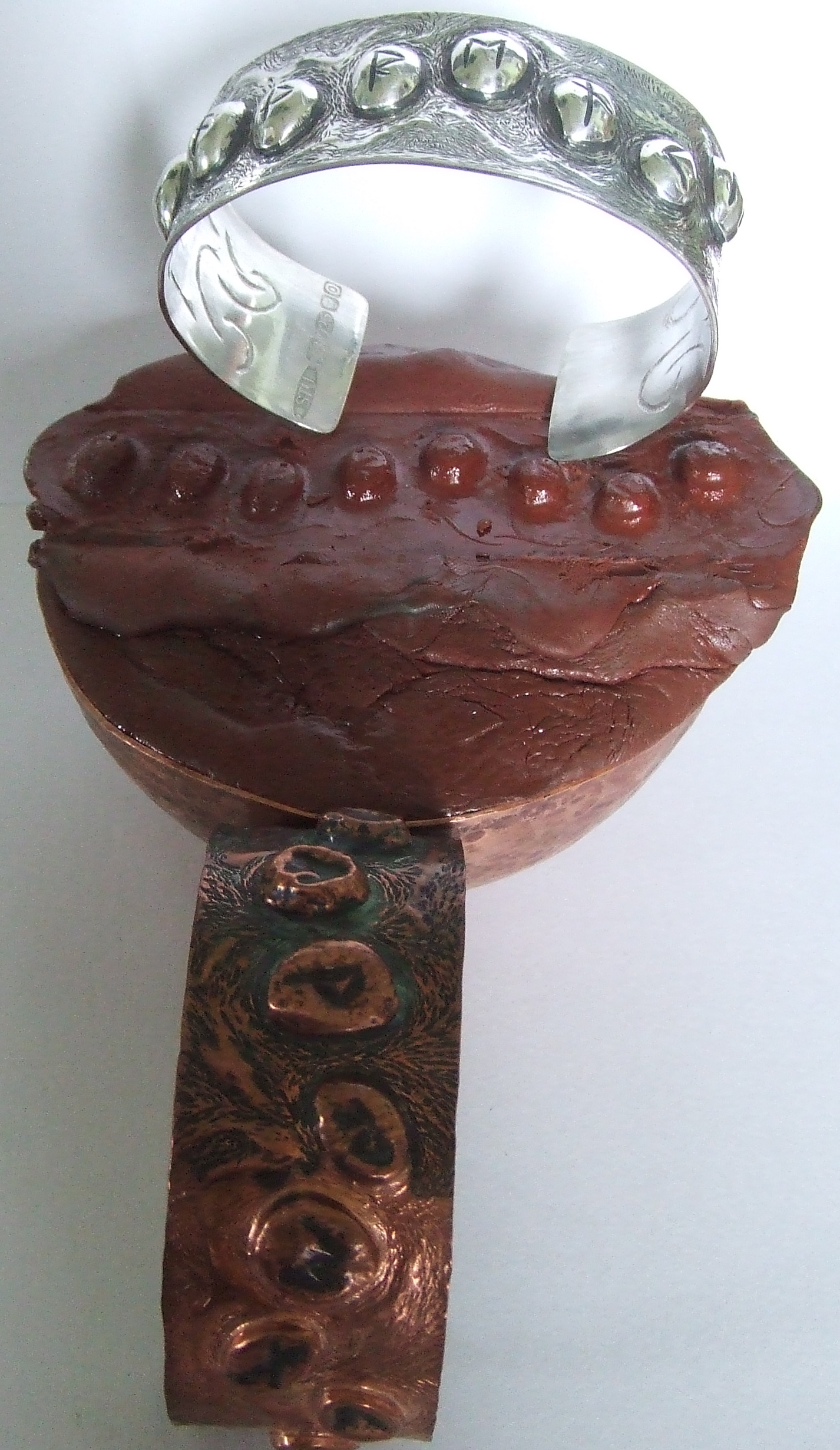

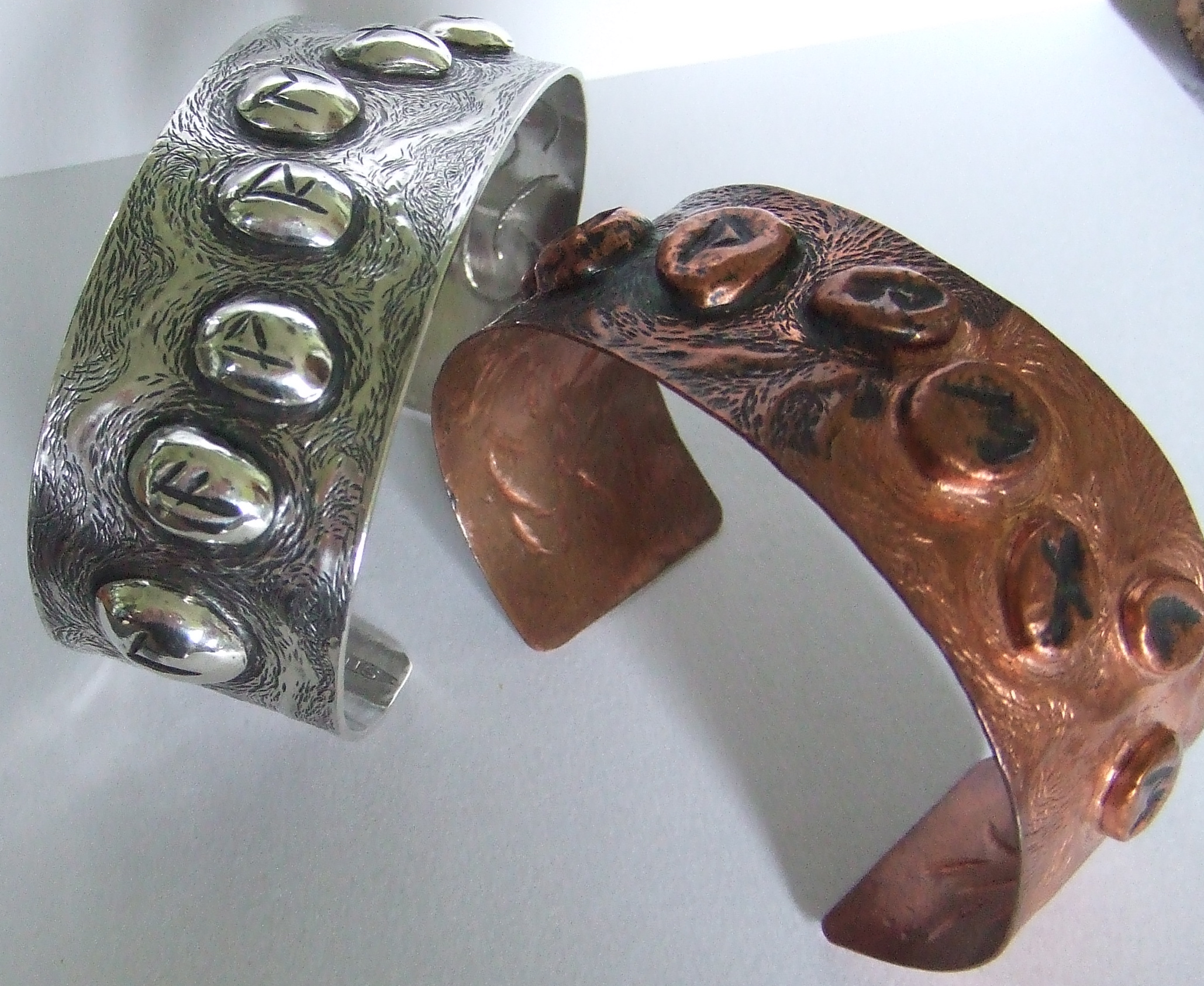

From a previous post, remember the copper ‘sketch’?

DSCF3414 DSCF3415

DSCF3417

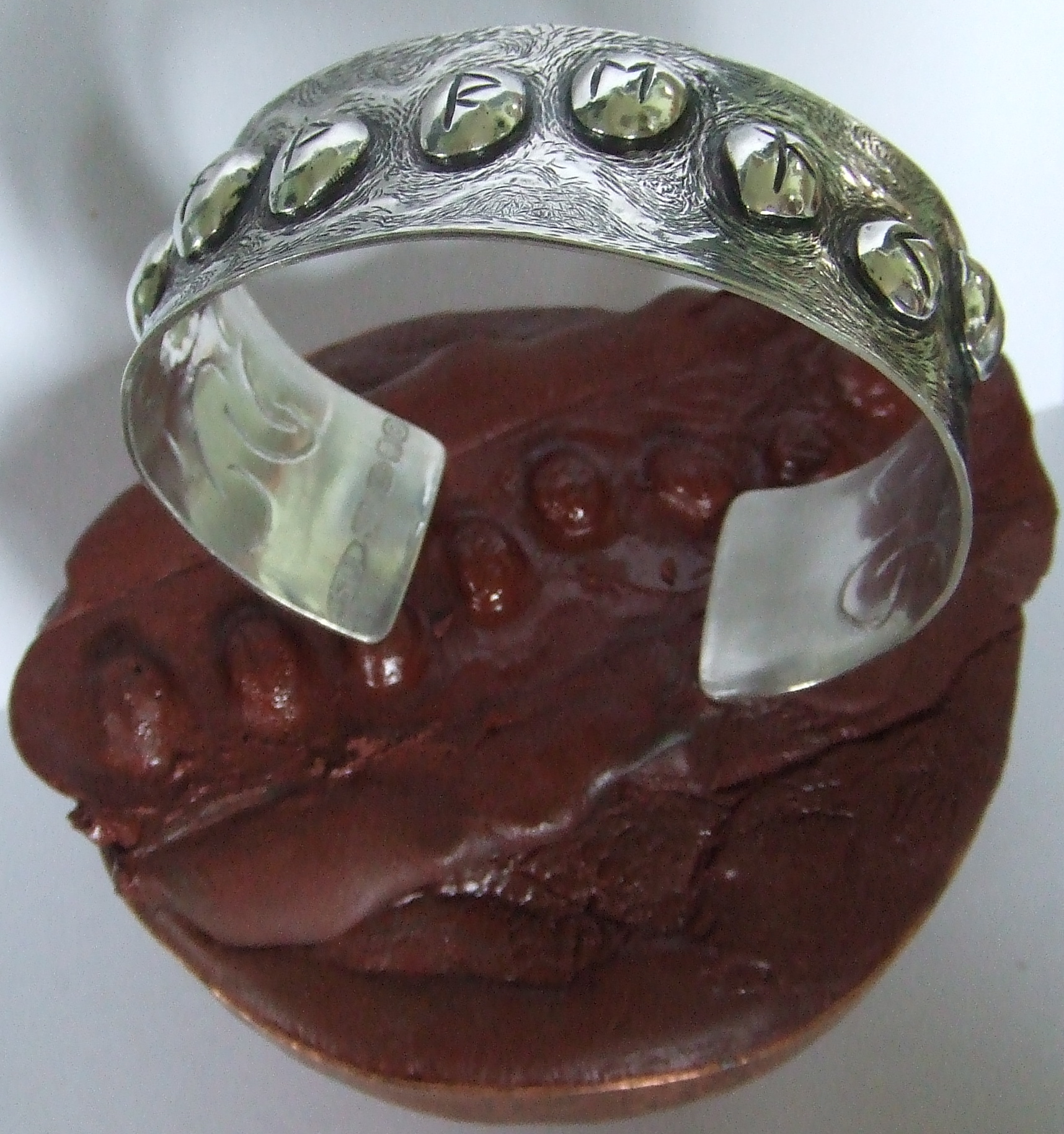

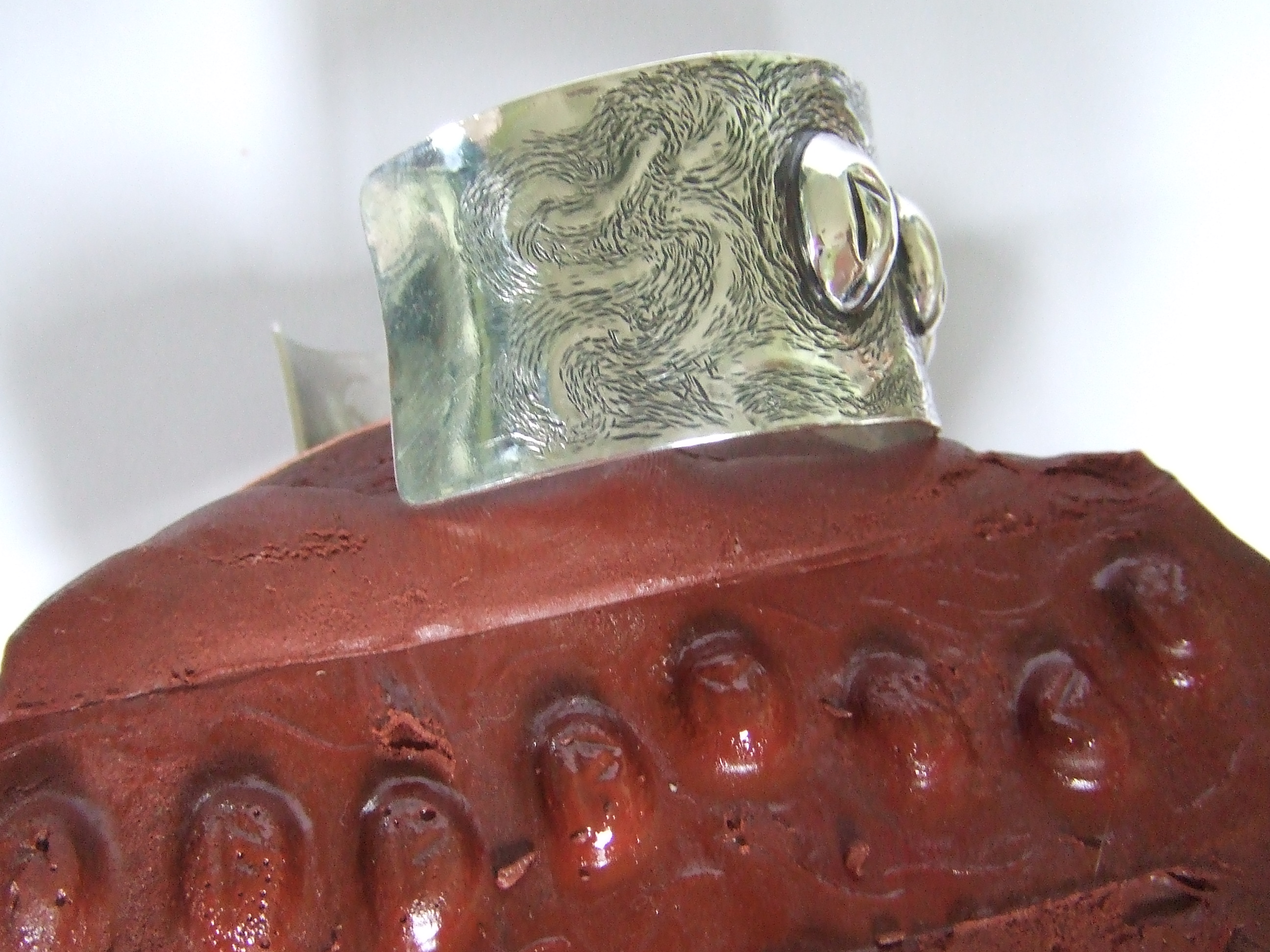

Another bonus with the German red pitch. Look at the impressions left after removing. It releases much easier, is a lot less messy and so much easier to clean up.

DSCF3418

Fingers crossed Lawrence likes it

Wato wato one and all.

The German red pitch is brilliant, I’m a convert. The green pine based pitch will still have a place in my workshop, I wont be throwing it out anytime soon, horses for courses as the saying goes. For rapid ‘puffing’ or the repousse´ stage, it still has a lot to offer, being as it is far softer than the red. At this time I feel confident in stating I will in all probability not use green pitch ever again for chasing. After using the red, it just isn’t supportive enough. When I made the copper model, yes I know its softer to start with, however I had to, after each course, return to a steel flat plate and return the surrounding areas to flat with mallets and punches. Not once did I have to using the red.

You will perhaps remember when I attempted to put in ‘Lawrence’ into the copper runes, they pretty much all collapsed. I feel very confident that would not have been the case if I had used the red, rather than the green pitch. Yes, the silver is stronger, remember though the amount of raising required to get the hight will have thinned the silver quite a bit, so perhaps not as strong as we may be lead to assume.

In conclusion, green for rapid and less precise repousse´ stages. Red for chasing and more refined lines, less planishing and more support. I hope this is helpful to some of you who, like me, wanted to know the difference. I still haven’t found anywhere on the web where comparisons are made, probably not looking hard enough, please let me know if you find such a site.

A very nice lady, check out her blog  http://patriciacarlson.wordpress.com/  told me of a workshop she attended with a master craftsman, David Bigazzi:-  http://www.dbcollection.net/

She very kindly passed on a tip she picked up whilst there. I show, in the first picture, a heat gun that I have always used for softening my pitch. I find the thought of playing a flame over it and all the associated soot, not good. My Dad is a heating engineer and he has a supper dooper programmable digital heat gun used to check out thermostats. I couldn’t afford one of those, but I got the idea this one. Its great for the job and has a variable heat setting that I find very controllable. Patricia also says DB uses such a gun for annealing!! How cool is that. I must confess I haven’t tried it yet, I will though. Could it be a better way, less risk of overheating and firestain. I will let you know, Thank you again Partricia.

Thank you all again for looking at this blog. Remember if you wish to see something, don’t hesitate to let me know, I love a challenge. I hope to show you next time some ring projects I have in the pipeline. A lady likes my moon series, but wants a ring made. I have done a copper model (no really 🙂 this will be a hollow design needing stakes that I made out of old bolts to create, I’ll show you how. Reen had been asking for me to do a moonstone ring, aaarrrrhhh stones, colour, get behind me Satan. I pays to get out of your comfort zone once in a whilr – right ;\

Until next time all my very best wishes.

Stu Art 🙂
