Repousse chased copper model of a custom cuff bracelet from conception to completion in pictures

DSCF3268

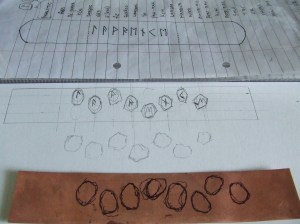

The drawing given to me with the rune alphabet and the caption as wanted. My interpretations at the bottom with the copper blank ready for lining



DSCF3270

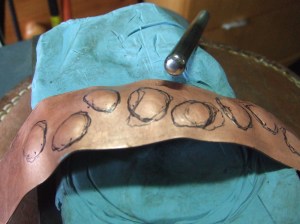

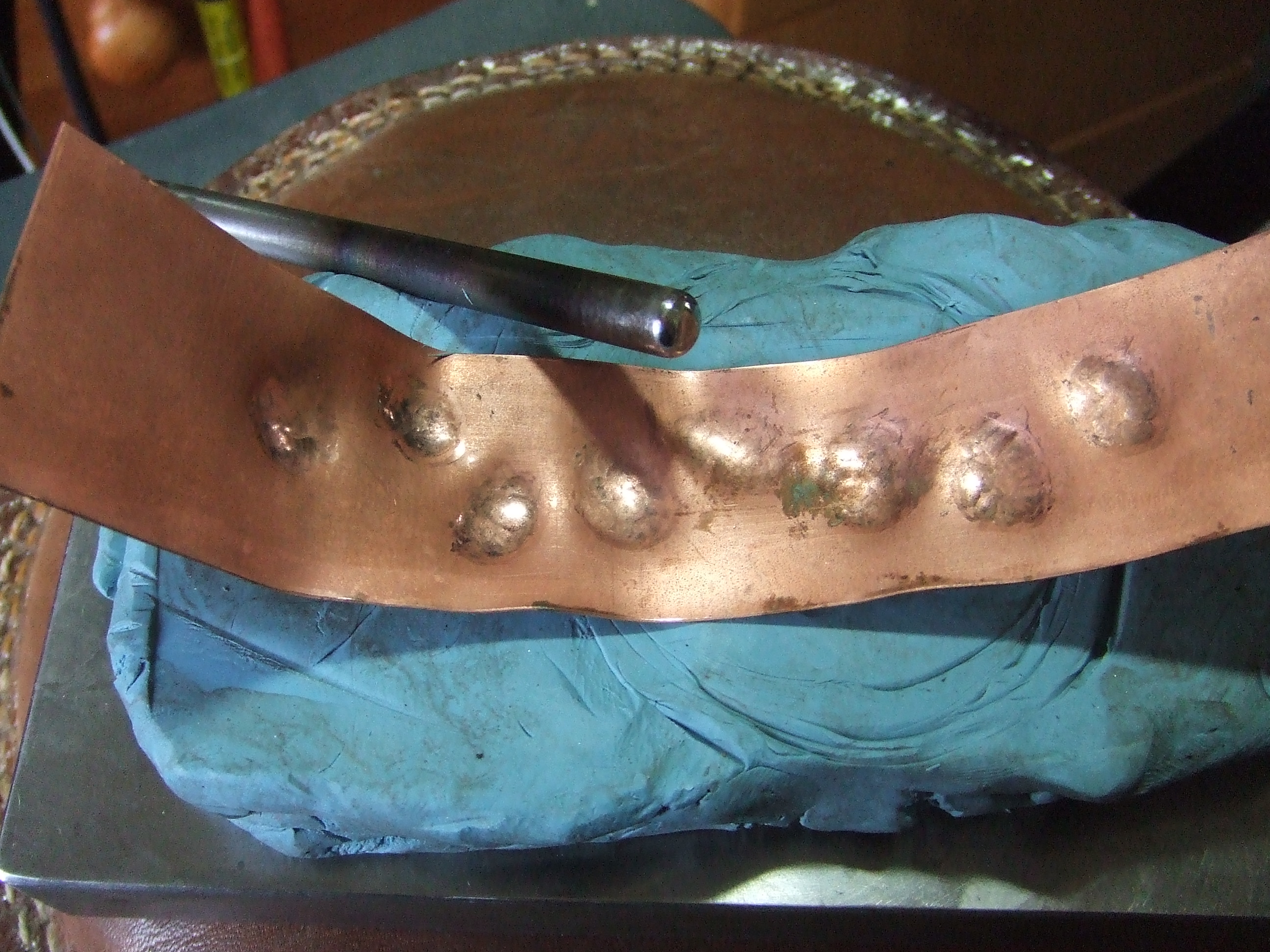

Without annealing, turn the lined piece over and use a rounded punch. Follow the outline, as made by the liner in previous stage, working towards the middle.

DSCF3271

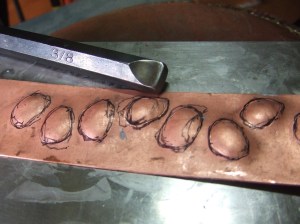

Turned over, on the plaster scene from previous stage, you can see the ‘runes’ taking shape. The surrounding material needs to be straightened out now.

DSCF3272

You can see this was an allen key, most of my tools start as allen keys, great cheep tool steel. The face, as most all of my chasing and repousse tools are, is mirror polished to prevent scarring of the material whilst working. The background is gently pushed down, again use the largest planishing punch as you can to minimise the overlapping tool marks that can lead to an unwanted planished effect. You are just ‘placing’ the material back, not forming it, just be gentle as you will need to repeat this again later.

DSCF3273

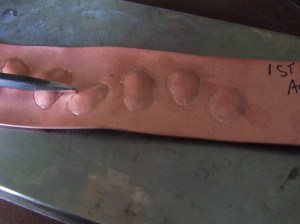

First annealing stage, pickled ready for more working.

DSCF3274

Because the material was work hardened in the previous stage this would likely not have been successful before this annealing. This takes the last stage to its conclusion, making the ‘runes’ return to the same level as the surrounding material. This allows you to separate the elements better later and allows you to see how high you have come, more importantly how much further you need to go.

DSCF3275

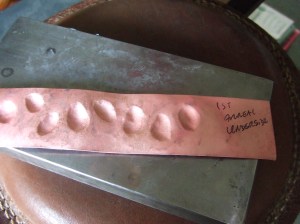

The underside after outlining the individual runes from the front, notice the clean edged as they have been encouraged back to the steel plate.

DSCF3276

A more focussed push tool is used for the second puffing out round. Same again, start from the outline and work towards the middle of each separate element.

DSCF3277

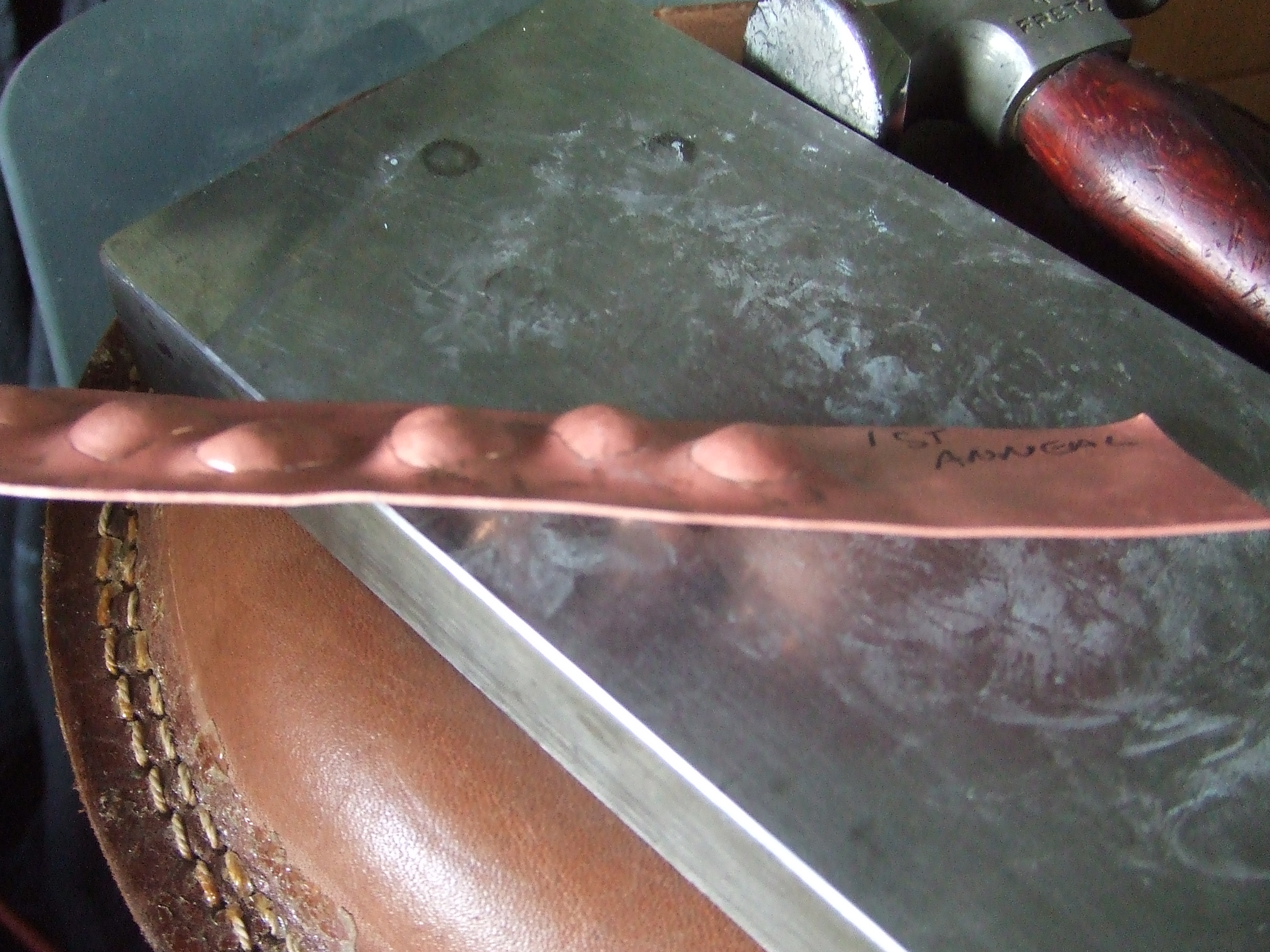

Compair this with the previous annealing, I need to start to think about making the runes look like separate elements rather than the balloon like appearance they have now.

DSCF3278

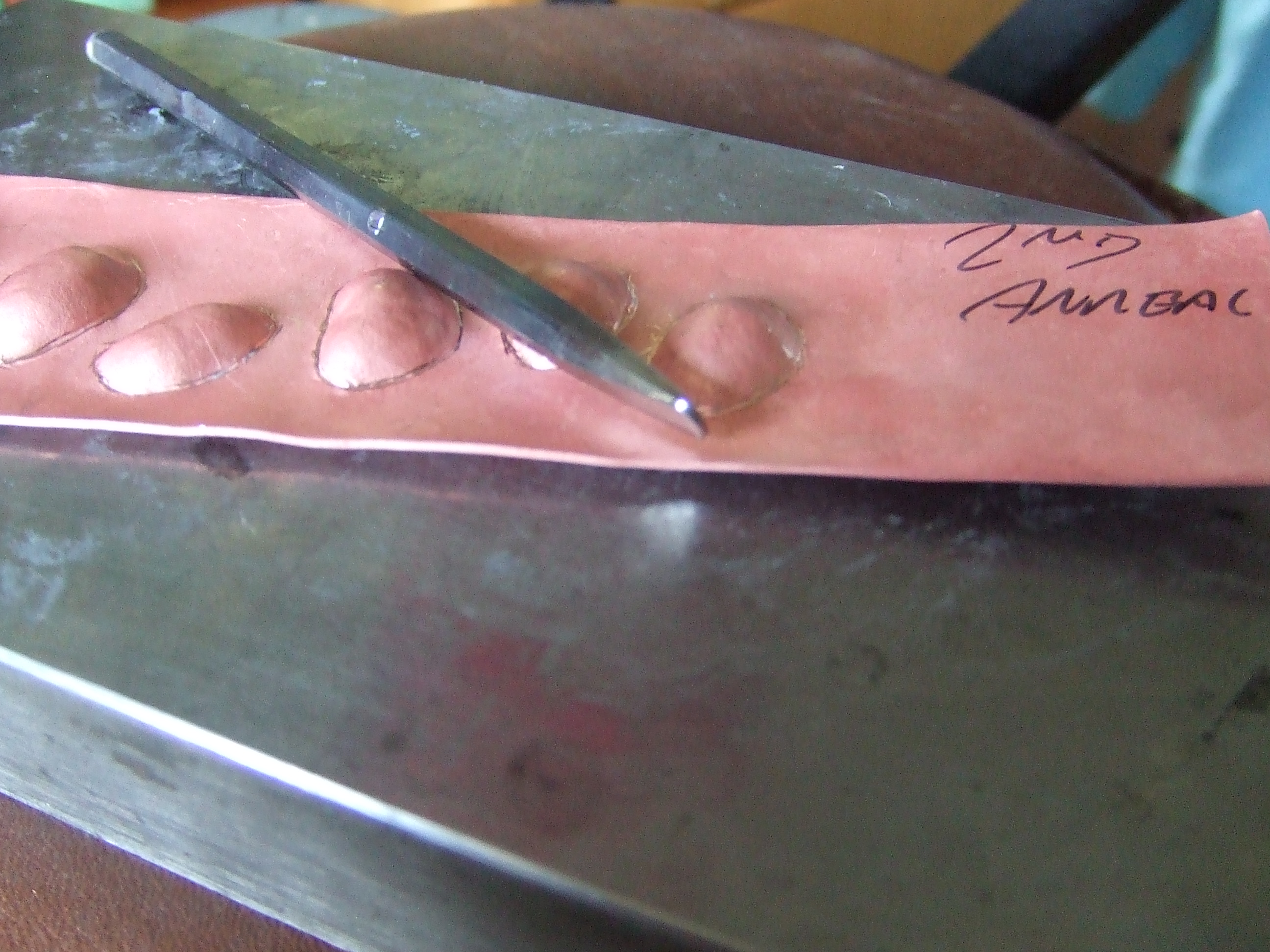

I will repeat this later. You will no way get this amount of height this early on working in any type of silver. You need to think about that as you may end up becoming despondent not being able when you try. Ask how I know 🙂

DSCF3279

Ready for undercutting now to make the runes look separate from the surrounding sheet.

DSCF3280

This is the sort of angle to use to give some material for undercutting when the piece is the right way up.

DSCF3281

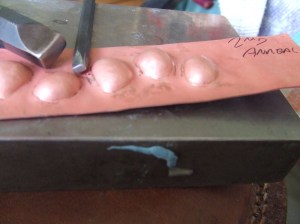

Two sizes of planishing punch, smallest one for the tighter gaps between the elements.

DSCF3282

Annealed and pickled, round three.

DSCF3284

Lined onto the metal plate again. Please be careful, too heavy hammering on this repeated process thins the material and a real risk of breaking through exists if you are a little exuberant at this stage. Guess how I found out : \

DSCF3285

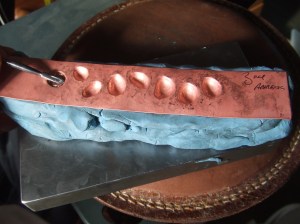

Straighter sides ready for undercutting, helping to further shape the illusion of separate pieces.

DSCF3286

This type of tool with a rounded blunt profile is used at this kind of angle.

DSCF3287

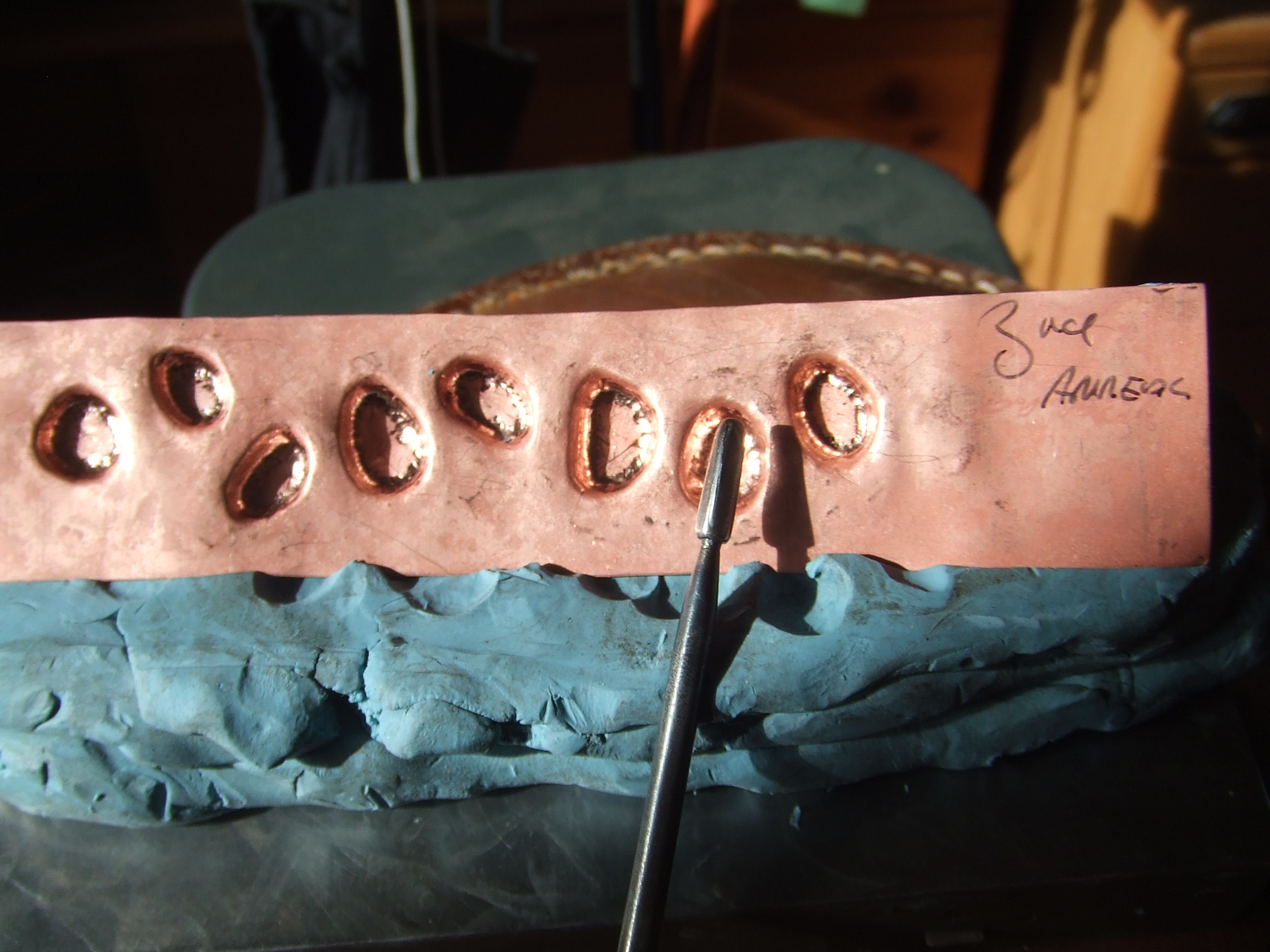

The shiny parts show where the tool has contacted. A little imagination is needed to envisage how you wish the elements to look from the front. This will dictate the profile, as well as the angle you choose to employ

DSCF3288

Much more defined and starting to look more like separate elements. Its over to the pitch now as the final shaping requires more support than the plaster scene can provide.

DSCF3289

A Victoria Lansford tip here, cooking oil applied to the side you are adhering to the pitch will aid its removal when completed.

DSCF3290

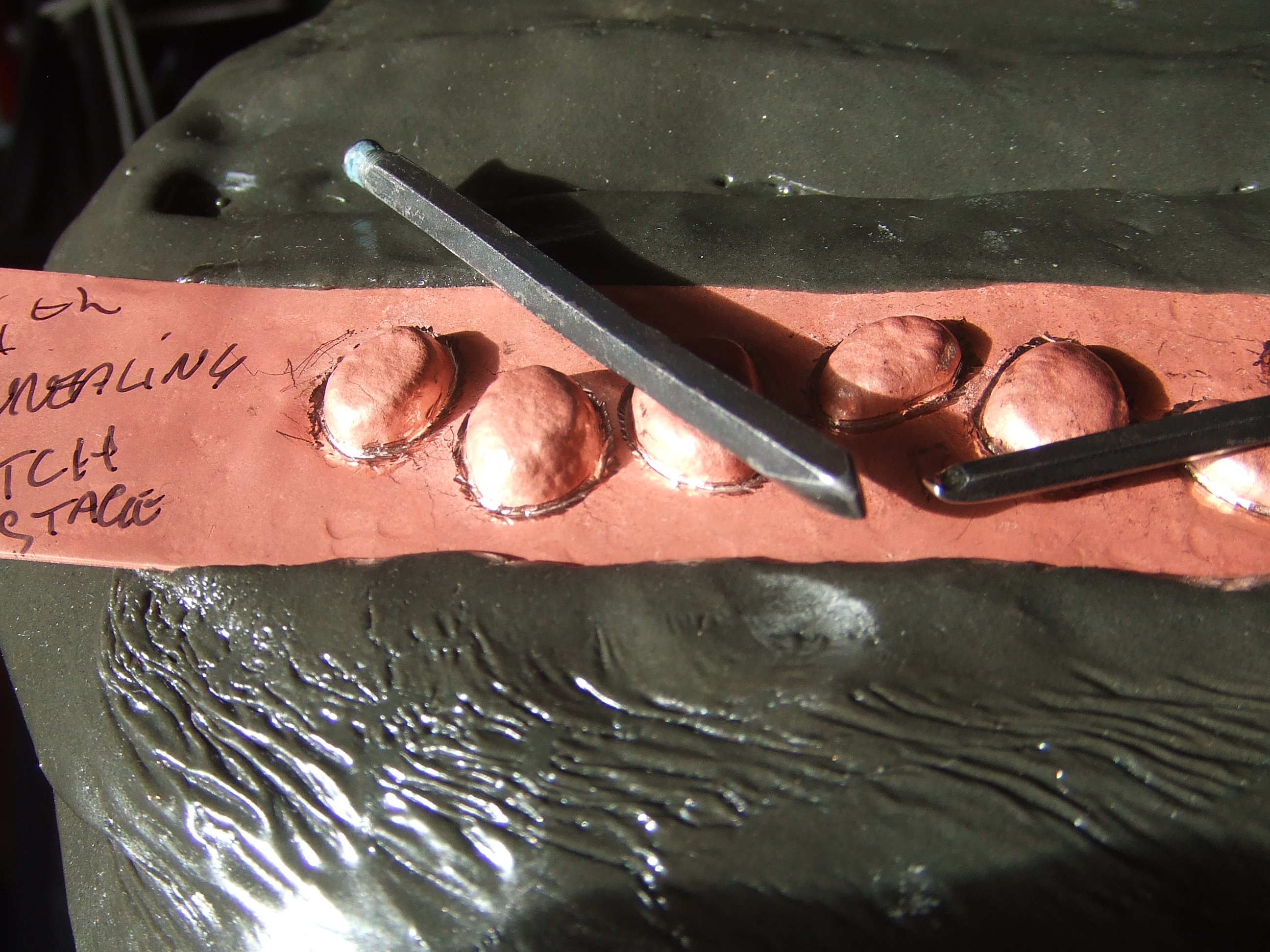

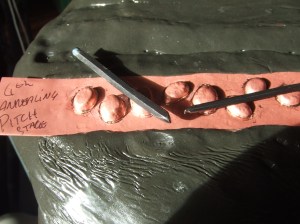

Sorry to say, imagination will have to guide you better than my words here. Study the two tool profiles, the blunt one is driven into the side to undercut each element. The other tool I made up from previous attempts to ‘lift’ elements. I made this type of tool for ‘wear your heart on your sleeve’ cuff when I was having trouble making the veins stand proud of the surrounding material. I find it effective, good luck if you wish to try your own. Better still, do you have any profiles you may wish to share?

DSCF3291

Another view of the two tools. The ‘lift’ tool shows the ‘belly’ I shape into it. Picture the effect this has when struck. The belly forces the tool to follow the rocker profile, the scoop profile then shapes and tucks in the element as it is described around each one.

DSCF3292

Just like the plaster scene stage, this is for making crisper definition that the more supportive pitch allows.

DSCF3293

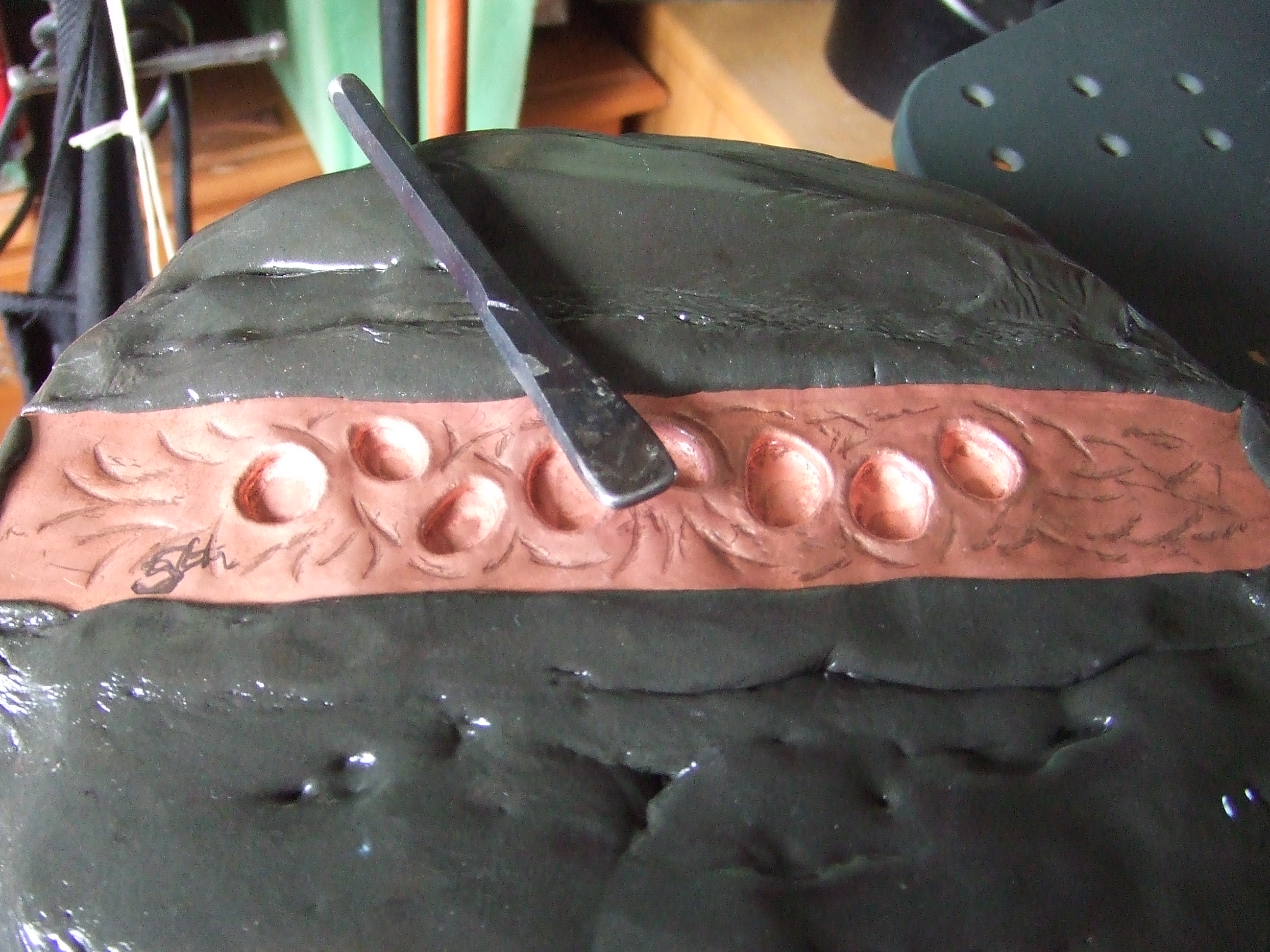

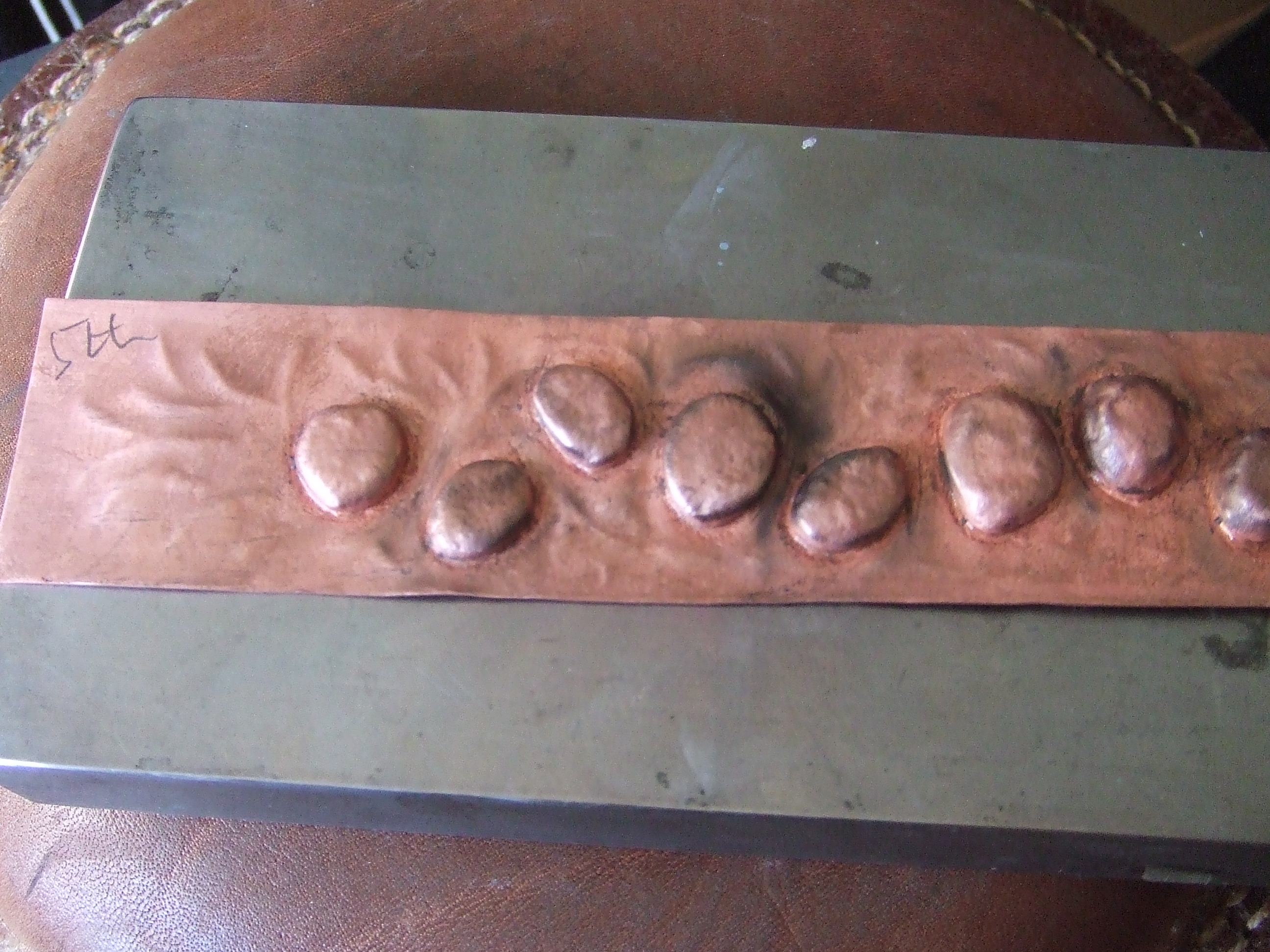

Playing with the runes theme, elements and the like, I thought water flowing around would give a greater visual impact. Back in the pitch, face down, this blunt rounded tool is used to create raised ripple like effects as seen from the front.

DSCF3294

Off the pitch, from the front on a steel plate.

DSCF3295

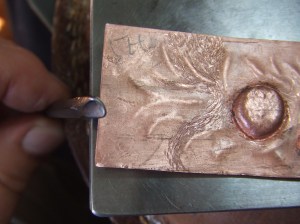

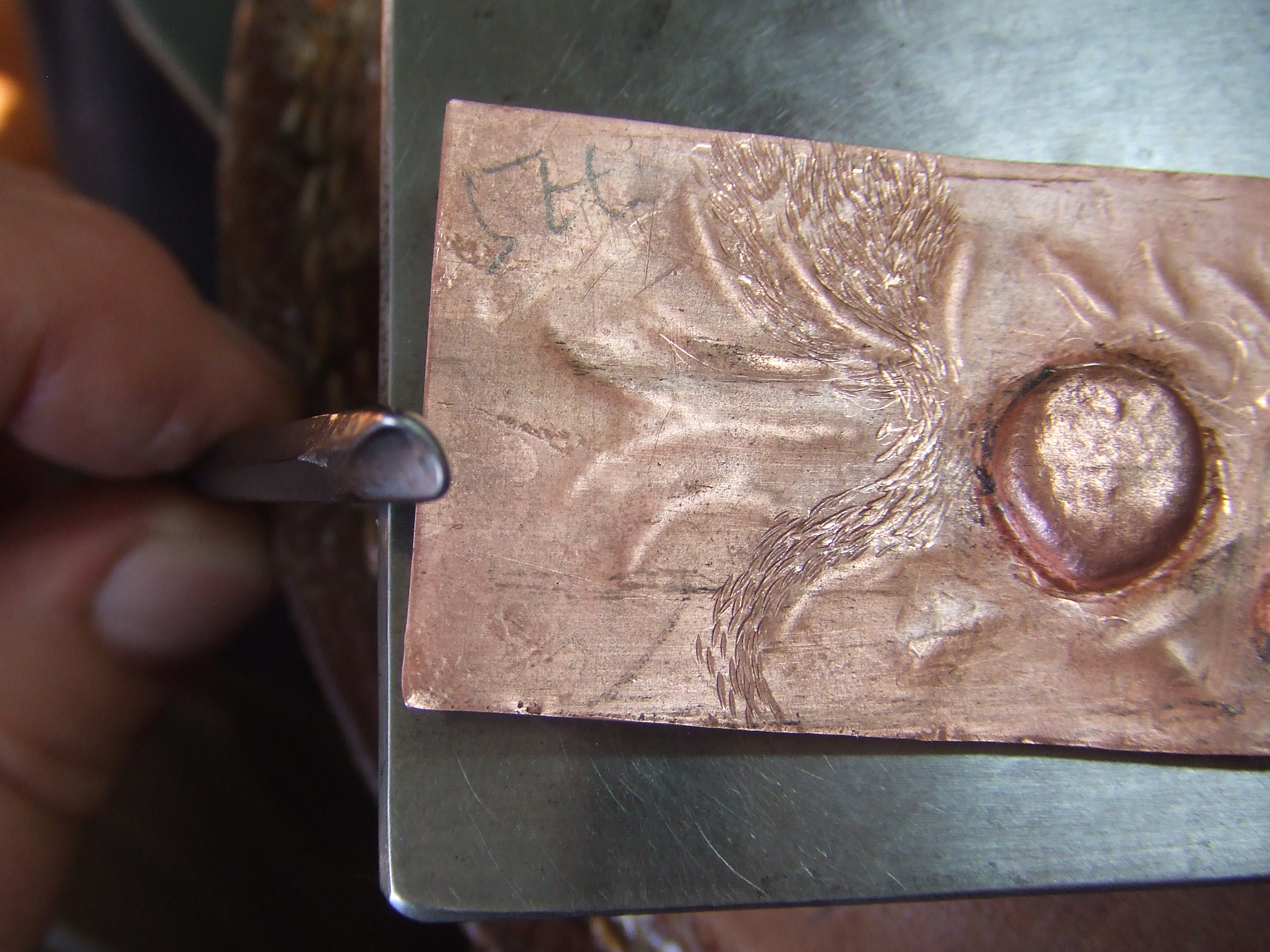

Chasing the flowing patterns, this is one of the curved liners I used, more in following pictures.

DSCF3296

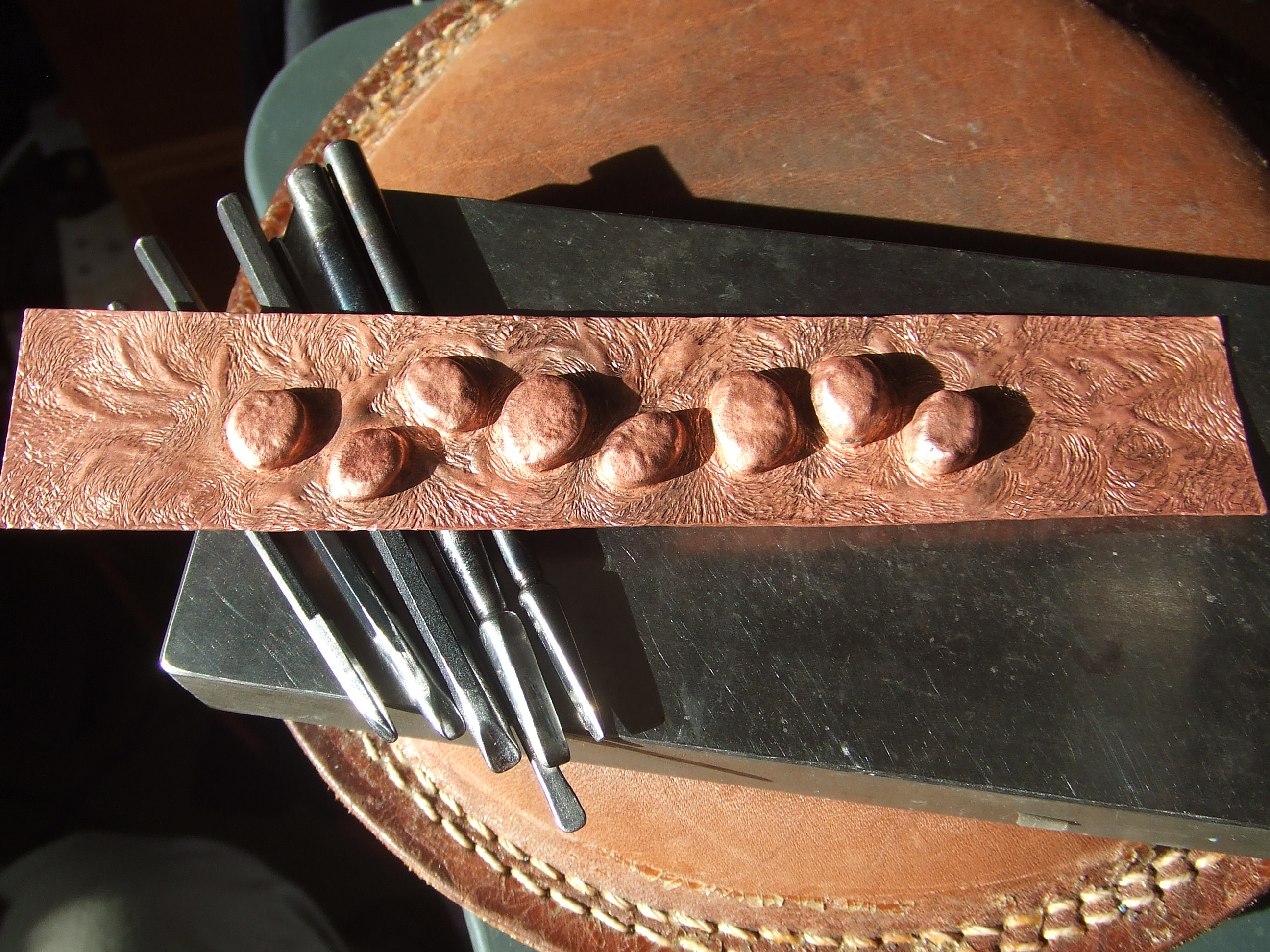

All the ‘flowing’ chased detail applied, shown are all the liners I used to attain this pattern.

DSCF3297

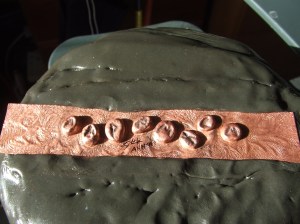

A blunt tool was used to mark out the rune letters that were requested. This is an example of spoiling the effect trying to rush. If you do this, remember to fill each element with pitch BEFORE you attach the whole piece. As you see some of the runes are sunken. This is due to be omitting this stage and having to contend with air pockets that do not support, leading to a collapse, shown here.

DSCF3298

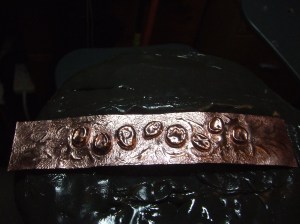

Cleaned up and fresh from the barrel polishing machine.

DSCF3301

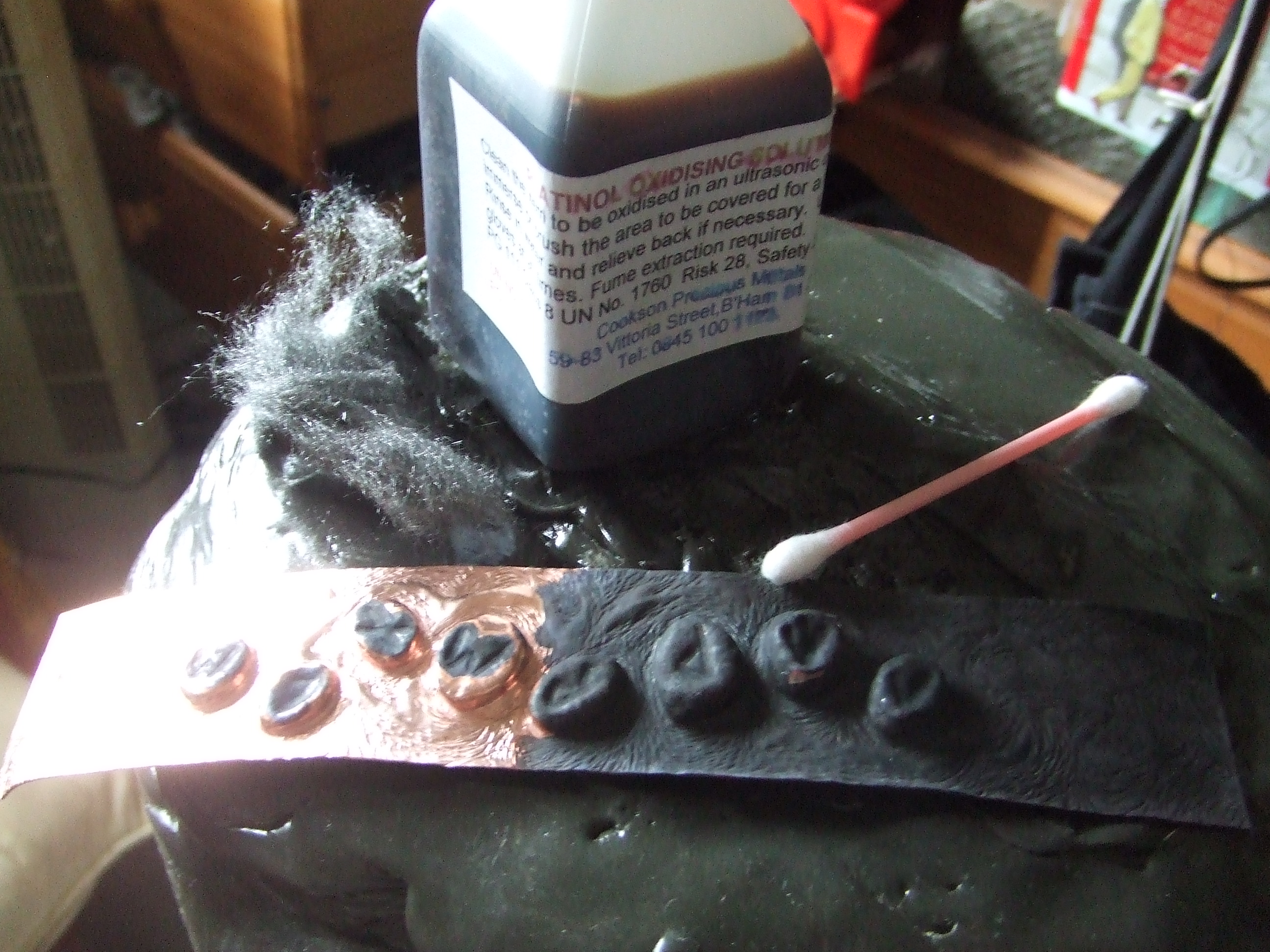

For illustrating options I chose to present this model half patinated to allow the chap to express a choice. I use a cotton bud as I find the solution wrecks brushes. The fine steel wool is used to take the black off the higher elements.

DSCF3302

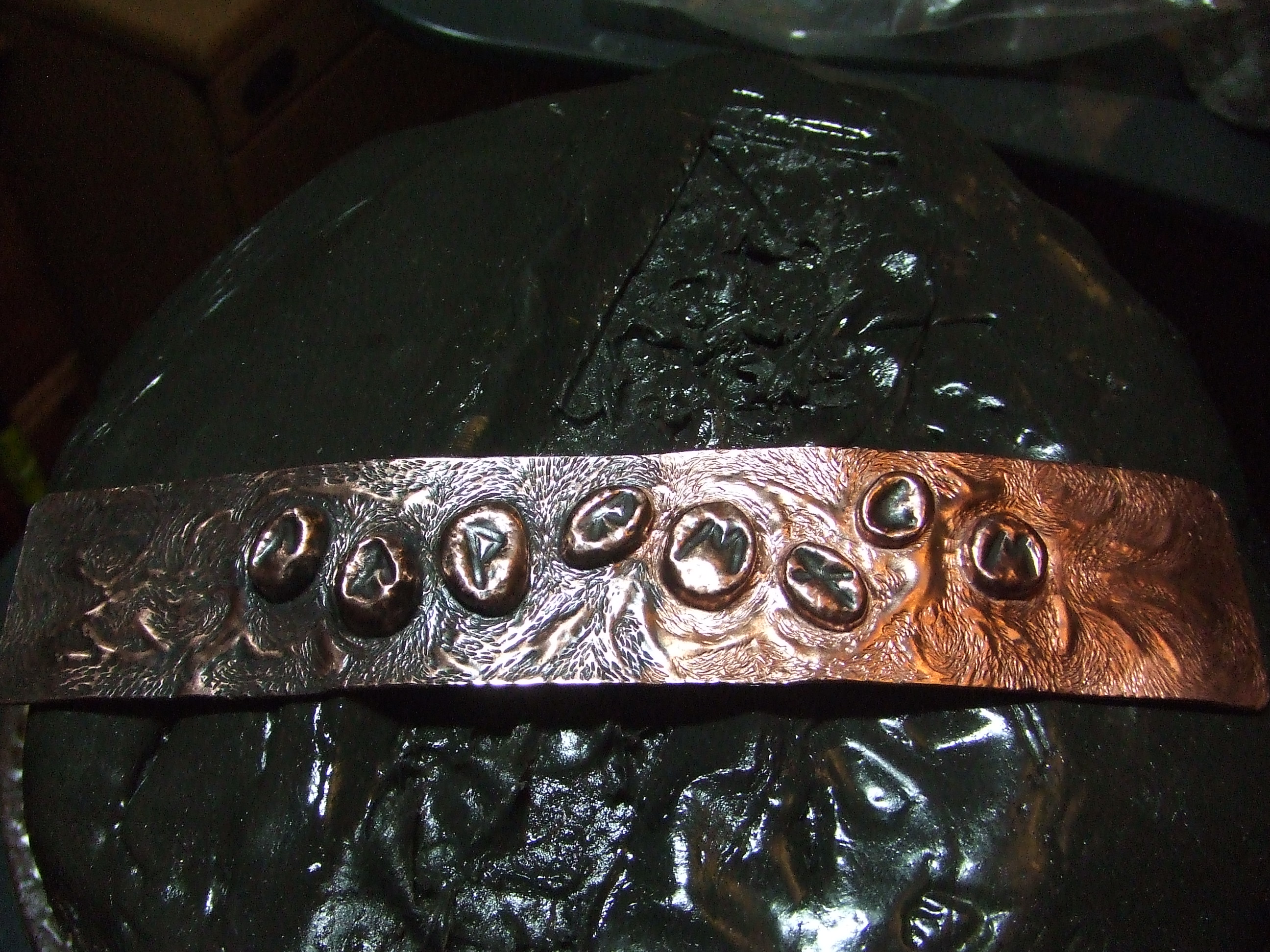

One half patinated, the rest shiny, decisions decisions.

DSCF3303

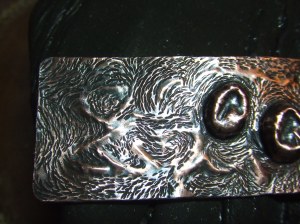

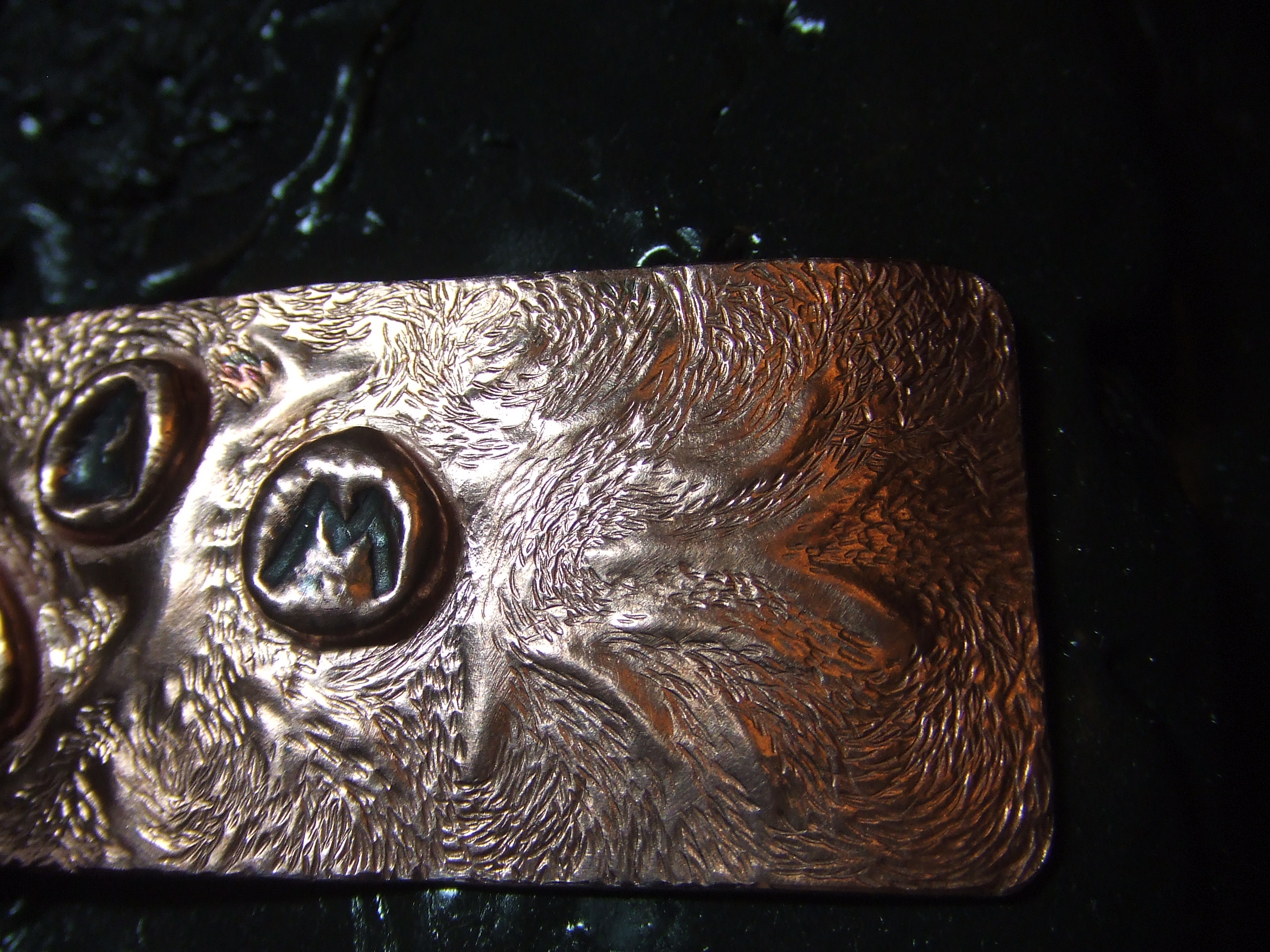

Close up of shiny, clearly showing the ‘reward’ for lack of patience, the rune squashed, what a twit eh.

DSCF3304

Patinated and high spots removed with the wire wool.

DSCF3305

In 0.6mm copper, not very durable, nonetheless a good example of what could be if the chap decides he wishes it made in silver. This is a great example of my approach to ‘sketching’. I could not draw this, no problem making it though, it is a communication tool that allows me to have a dialogue with a person as they finger the surface and are able to better communicate what they want through seeing a representative model first.

DSCF3306

I have added this image of a packet of Plasticine. If you go to an art shop and ask for the generic equivalent , you get much more for your money.
As a thought for the people who wish to dip their toe in the repousse and chasing water, without going to the expense of purchasing pitch and the associated equipment needed to use it, I have had a thought. If you push the plasticise firmly into the depression you wish to add detail to, perhaps experiment by putting it in the fridge of freezer, this will stiffen up the plasticine, obviously you will have to work out how much support this will give, making allowances and decisions when to return the piece to the cold as it warms.
The pitch is very much more supportive, better to use for limited amounts of puffing that traditional low relief chasing and repousse require. The higher relief style I like, I find the plasticine saves time by yielding more, giving me more bang for the annealing buck as it were. Also the pitch will give a pretty accurate indentation for the tool used. Imagine poking your finger up inside a stretched piece of fabric. Your finger will make an impression of a tent as the material around is also pushed up. Depending on the pitch mix/hardness this effect can be, to a greater or lesser degree, avoided, making for crisper definitions of elements. The plasticine will drag material from further around the initial tool impression making ‘hills’ if you like.
If anyone does experiment with cold plasticine, I would be very interested to hear how you get on.

Wato wato

I thought this example of a commission I have received will help to better understand the chasing and repousse methods I use. Better still I sincerely hope it will encourage you to have a go, please do ask me for any further clarification should you need it. I would also be thrilled to see anyone else’s work if they would care to share it.

Lawerence is a fantastic chap who is into shamanism, ooooookkkayyyy I hear you say. I know I know, perhaps a little eccentric, better that than the abundance of dullness I say. A thoroughly decent and nice chap to boot as well and someone who I am very glad to say I now call friend.

Lawrence saw Clairs bangle, you know the pebble one, look back or go to my Facebook page if you need reminding. He came up with the idea of having his name in runes, the drawing in the first photograph will give you the gist.

I will let the pictures do the talking, well they do have some explanations attached, as I say, please do ask if I have not been clear.

As for the silver final piece, well I will have to wait as I have you to show this to him for his opinion. Rest assured if he does decide I will post a picture when I have completed it. As I state in the pictures this model was made in very thin, ex copper water tank, 0.6mm. Sterling silver will be the material of choice for the ‘real’ one. It will take, if I’m lucky twice as many annealings as it took to realise the model working as I do in 0.9mm stirling silver sheet. Please bear this in mind if you jump right in with your own projects, it takes very much longer and is much harder to move than the copper shown here.

As many of you already know I’m no artist and find drawing skills frustratingly illusive at this time, though I am still working on it. To my mind this approach is not much more time consuming than a fine rendering in different aspects that a silversmith or jeweller may need to satisfy a client. As a bonus my ‘handicap’ means I am continually learning in my chosen medium by practicing in it most of the time through necessity. Thin gauge models work for me, go on try it, you may like it.

I hope you enjoyed the photographic journey to the end and it encourages you to have a go for yourself.

All my very best wishes.

Stu Art
